Radio, Amplifier, and Multimedia Player Interface Module Power, Ground and Data Communication

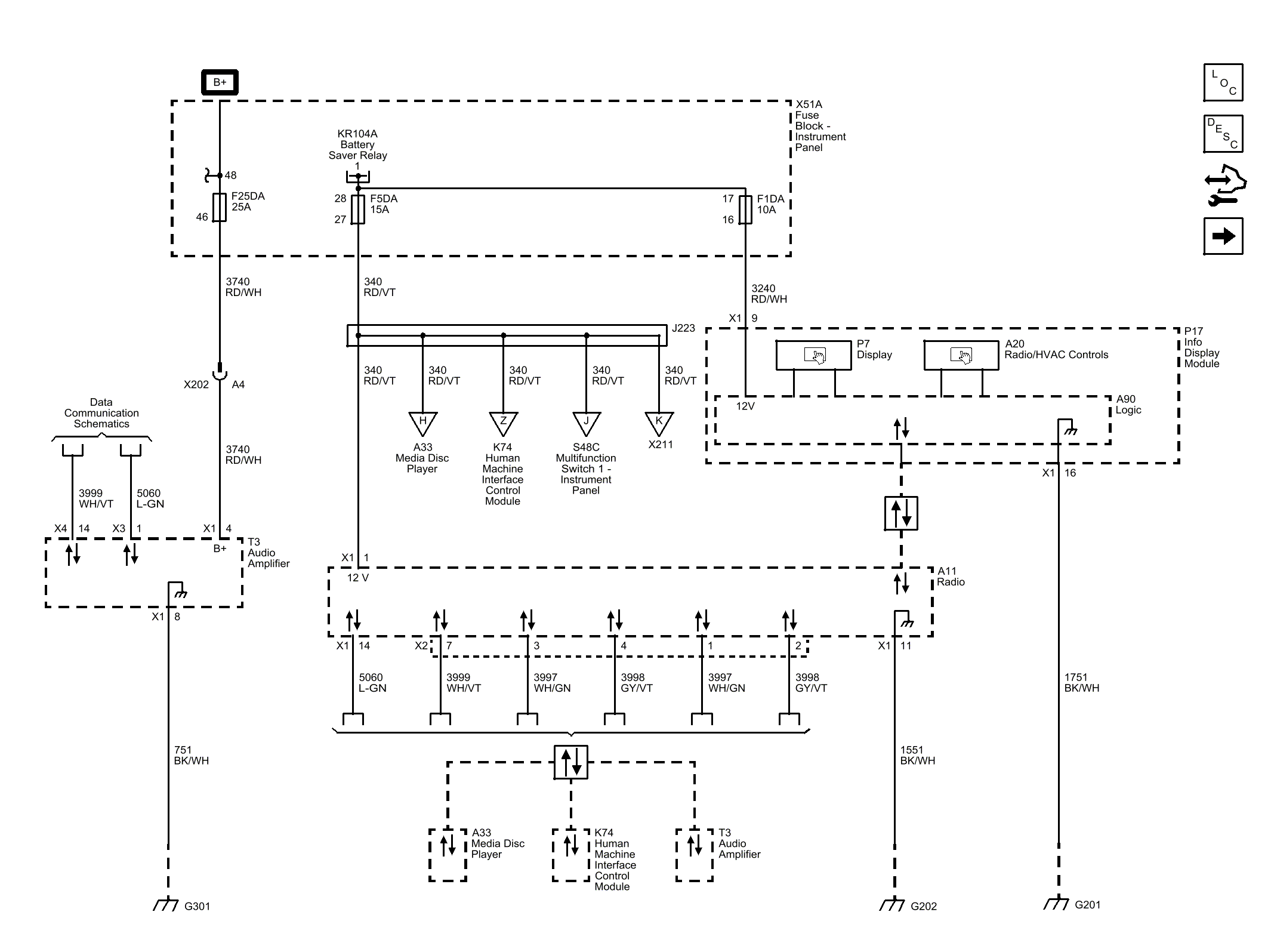

Fig 1: Radio, Amplifier, and Multimedia Player Interface Module Power, Ground and Data Communication Wiring Schematic
GM3412674Courtesy of GENERAL MOTORS COMPANY
