Module Power, Ground, Serial Data, and MIL

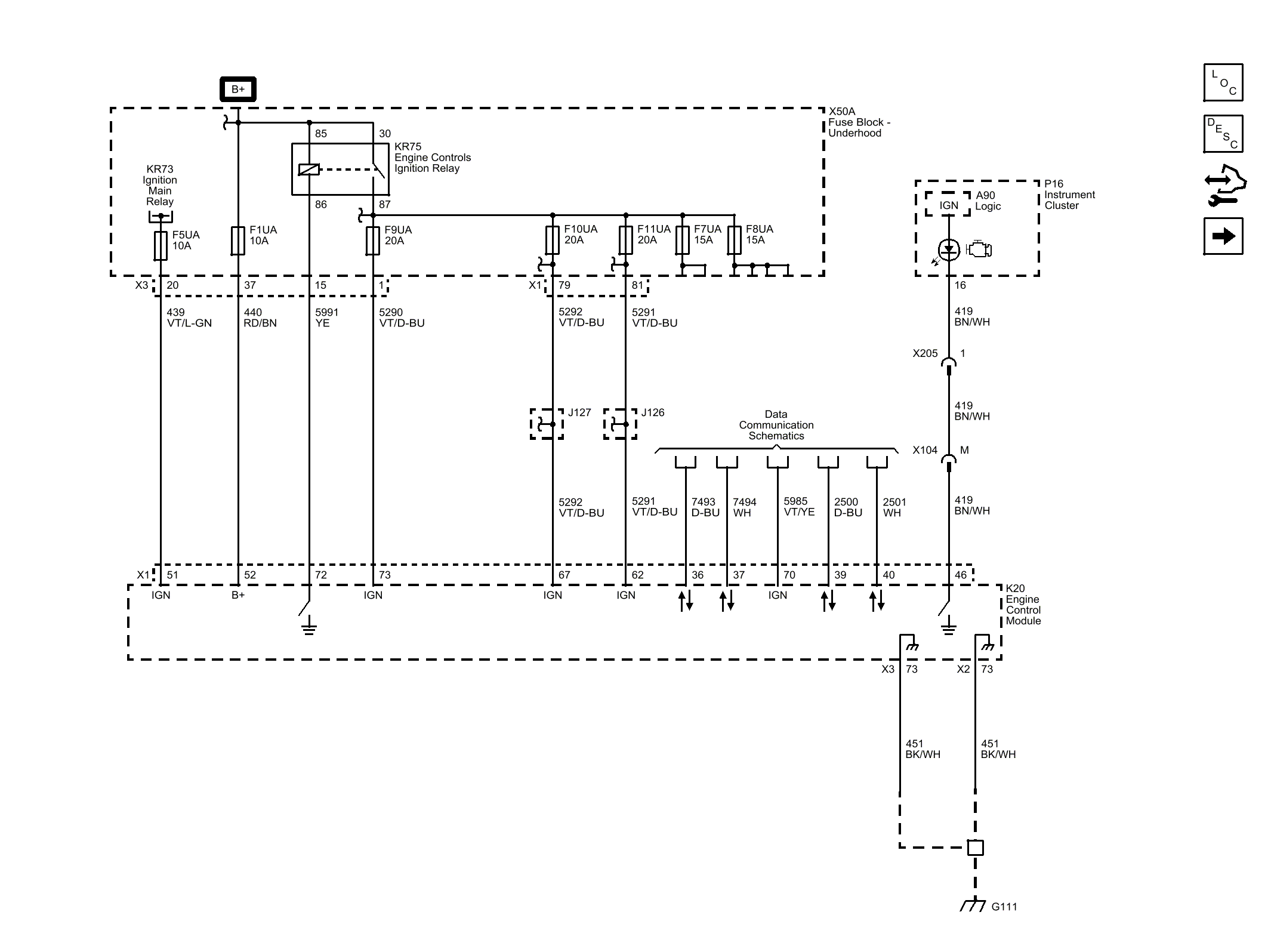

Fig 1: Module Power, Ground, Serial Data, and MIL
GM3412706Courtesy of GENERAL MOTORS COMPANY
