Power, Ground, Serial Data and Controls (UD5/UD7/UFQ)

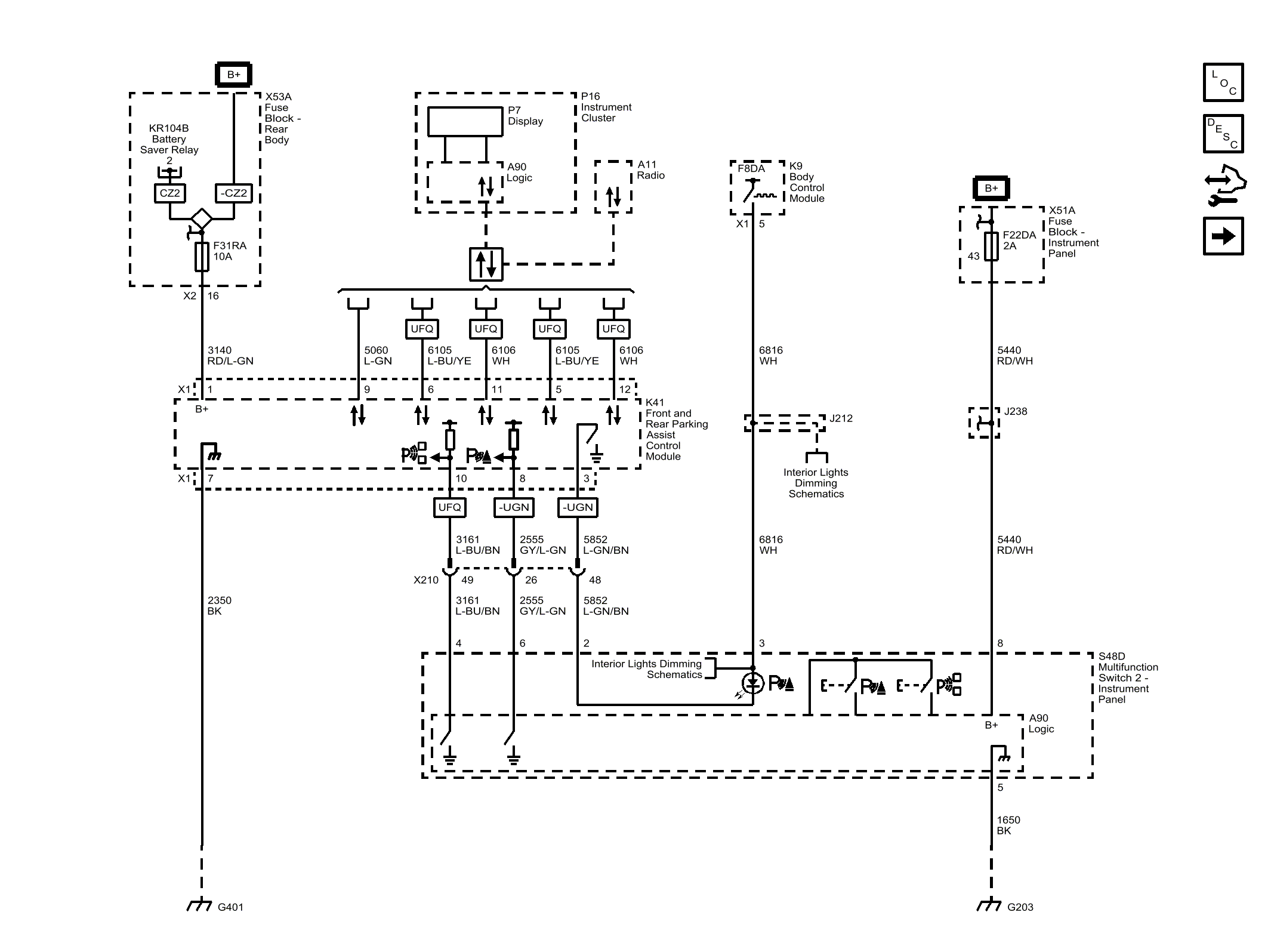

Fig 1: Power, Ground, Serial Data and Controls (UD5/UD7/UFQ)
GM3603865Courtesy of GENERAL MOTORS COMPANY
