Manual Transmission Components (M3L)

Manual Transmission Components (M3L)

Items
1: B209 Neutral Position Sensor (KL9) B209 Neutral Position Sensor (KL9)
2: B16 Backup Lamp Switch (M3L) B16 Backup Lamp Switch (M3L)
3: B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (M3L)

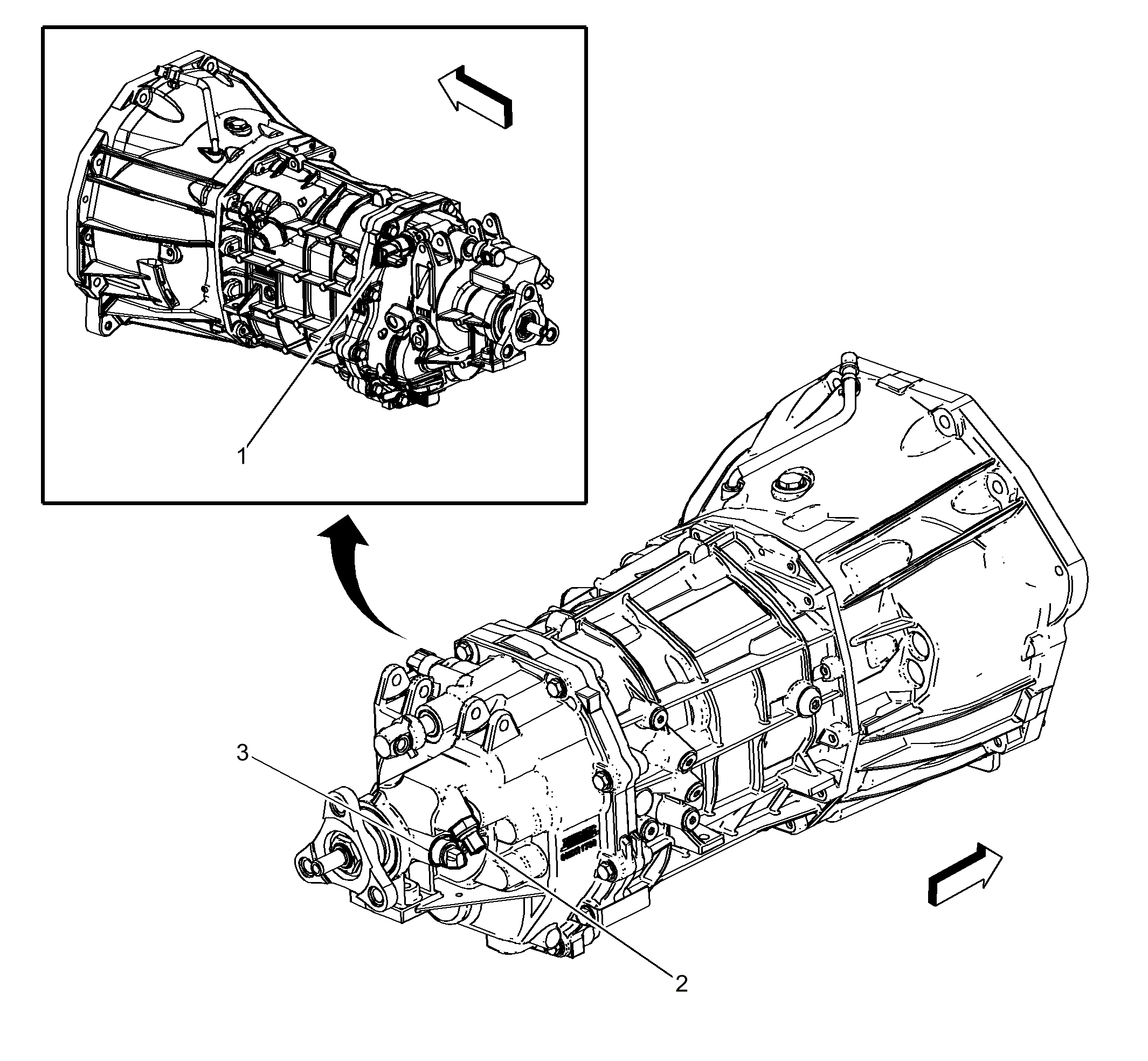

Fig 1: Manual Transmission Components (M3L)
GM3247726Courtesy of GENERAL MOTORS COMPANY
