Radiator Support Components
Radiator Support Components

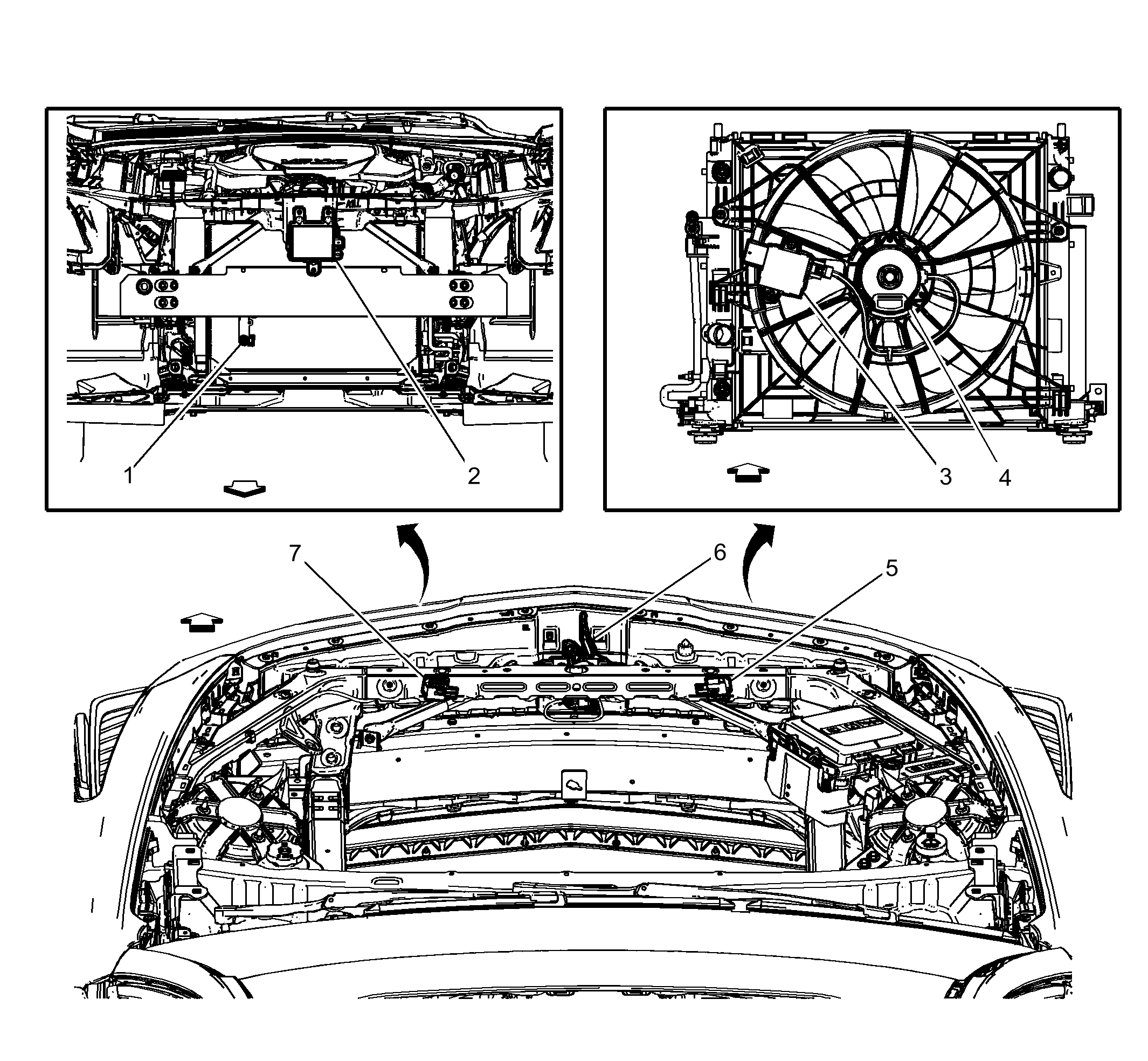

| Items |
|---|
| 1: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 2: B233B Radar Sensor Module - Long Range (UGN) B233B Radar Sensor Module - Long Range |
| 3: K22 Cooling Fan Control Module (except LF3) K22 Cooling Fan Control ModuleK22 Cooling Fan Control Module X1 (without V03)K22 Cooling Fan Control Module X2 (without V03) |
| 4: G10 Cooling Fan Motor G10 Cooling Fan Motor |
| 5: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| 6: B55 Hood Ajar Switch B55 Hood Ajar Switch |
| 7: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
