Instrument Panel Components - Face

Items
1: P43 Collision Alert Indicators (UEU without UV6) P43 Collision Alert Indicators
2: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
3: P16 Instrument Cluster P16 Instrument Cluster X1 P16 Instrument Cluster X2 (UV6+UDV)P16 Instrument Cluster X2 (UV6-UDV)
4: P29 Head-Up Display (UV6) P29 Head-Up Display X1 P29 Head-Up Display X2 ()
5: S38 Ignition Mode Switch S38 Ignition Mode Switch
6: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
7: P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
8: S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel
9: P17 Info Display Module P17 Info Display Module X1 P17 Info Display Module X2 ()P17 Info Display Module X3 ()
10: S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel
11: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
12: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter
13: E1H Accent Lamp - Right Instrument Panel (TSP) E1H Accent Lamp - Right Instrument Panel
14: X92 USB Receptacle X92 USB Receptacle ()
15: A20 Radio/HVAC Controls
16: E1GA Accent Lamp - Left Middle Instrument Panel (TSP) E1GA Accent Lamp - Left Middle Instrument Panel
17: S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt and Telescope Switch
18: S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch
19: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch
20: S91 Park Brake Control Switch S91 Park Brake Control Switch
21: E1G Accent Lamp - Left Instrument Panel (TSP) E1G Accent Lamp - Left Instrument Panel

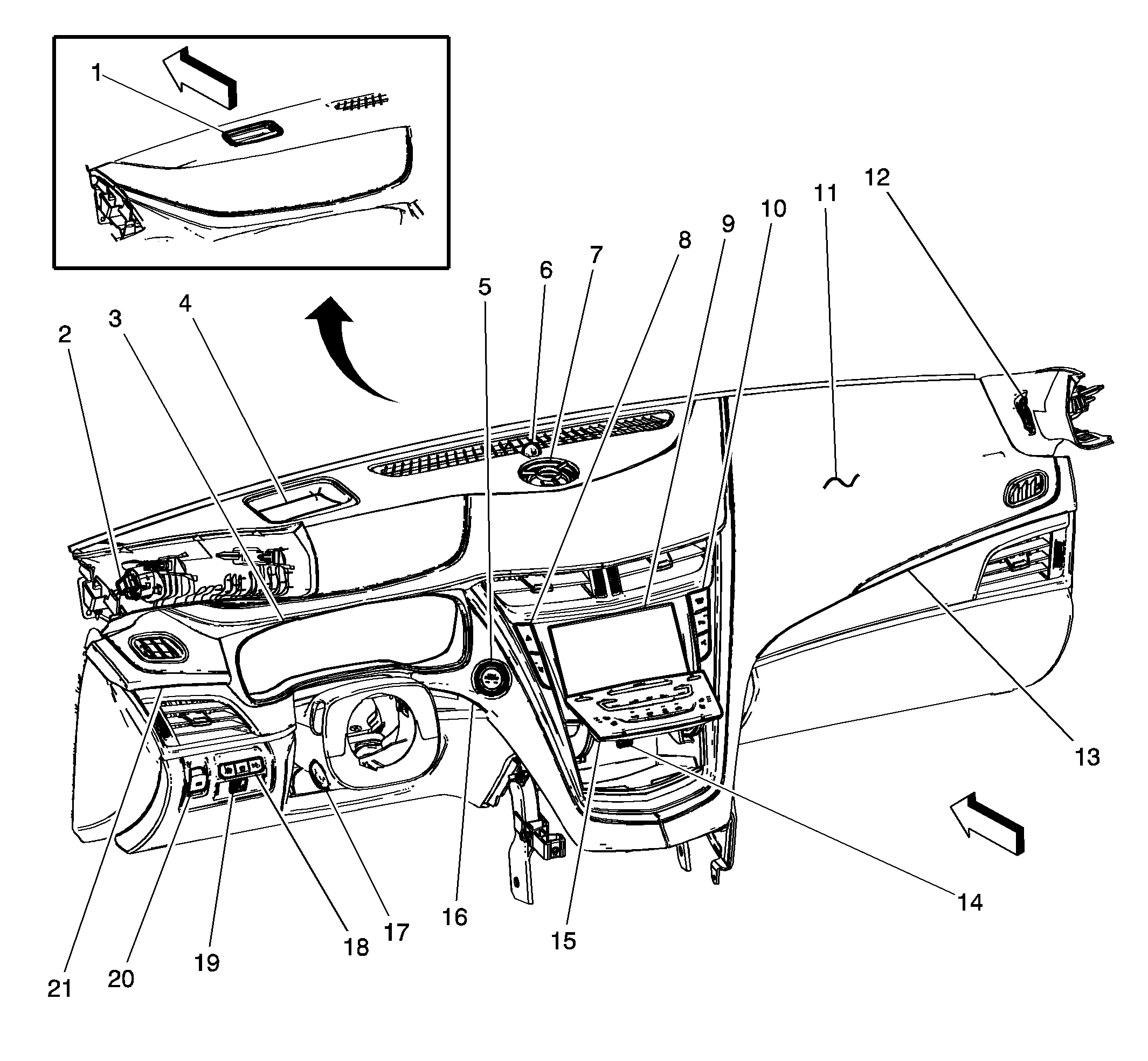

Fig 1: Instrument Panel Components - Face

Courtesy of GENERAL MOTORS COMPANY
