Communication Interface Module Bracket Replacement

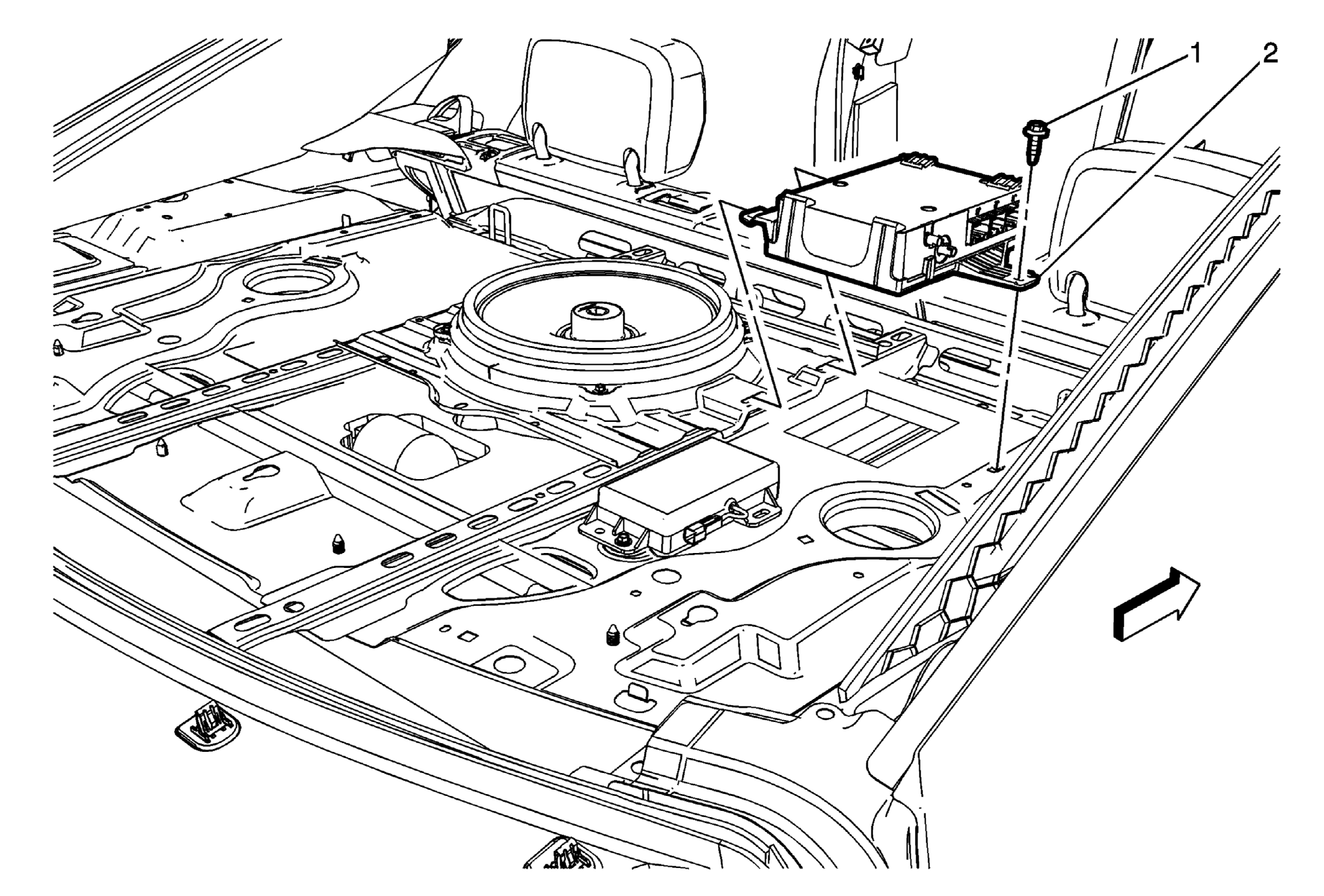

Fig 1: Communication Interface Module Bracket & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without DB3)Rear Window Panel Trim Replacement (With DB3) .
1	Communication Interface Module Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Communication Interface Module Bracket Procedure Disconnect the electrical connector of the module. Transfer components, as necessary.

Callout

Component Name

Communication Interface Module Bracket Fastener

CAUTION:

Tighten
2 N.m (18 lb in)

Communication Interface Module Bracket

Procedure
