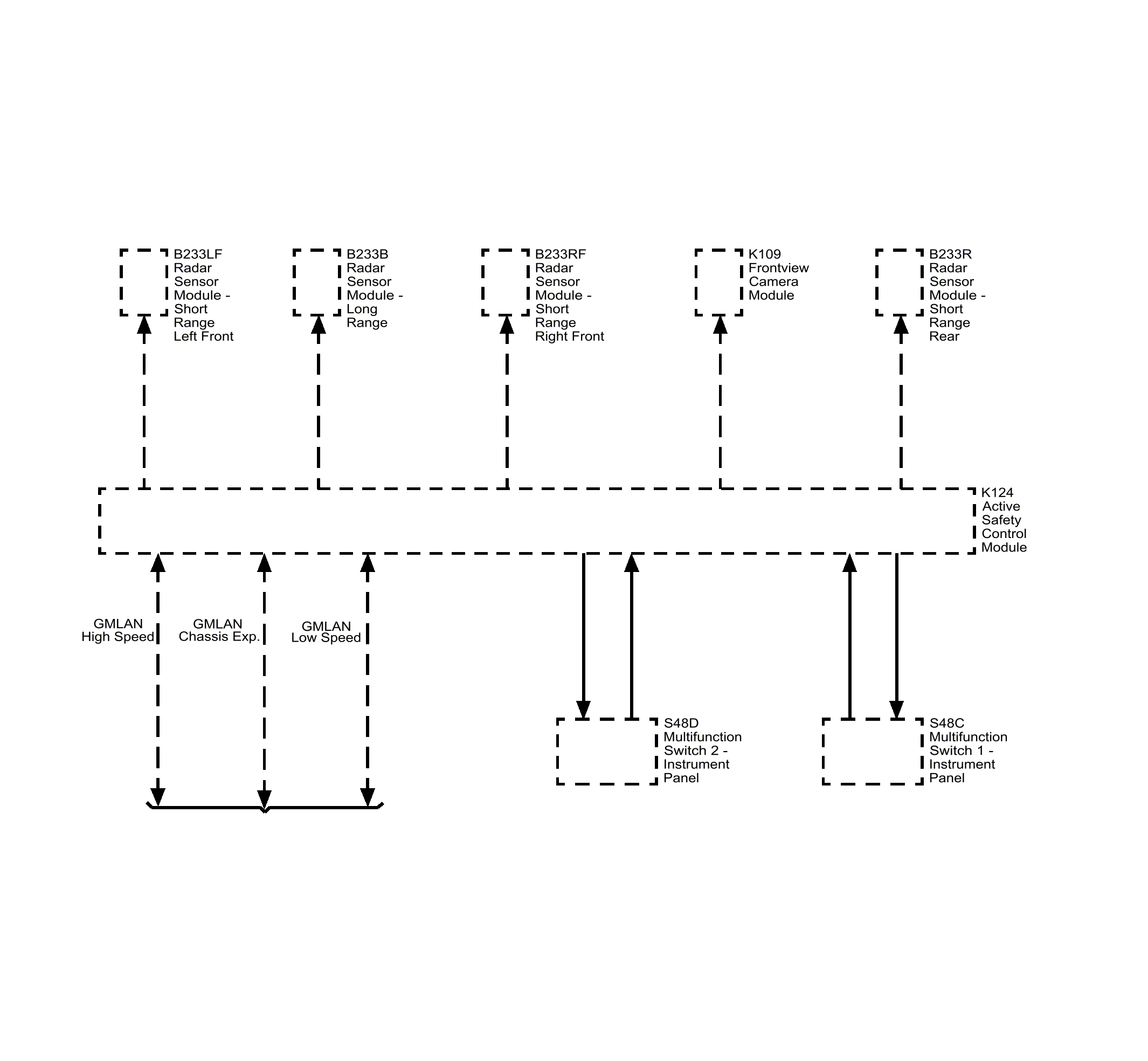

The Active Safety System
| Callout | Component Name |
|---|---|
| B233LF | Radar Sensor Module - Short Range Left Front |
| B233B | Radar Sensor Module - Long Range |
| B233RF | Radar Sensor Module - Short Range Right Front |
| K109 | K109 Frontview Camera Module |
| B233R | Radar Sensor Module - Short Range Rear |
| K124 | Active Safety Control Module |
| S48C | S48C Multifunction Switch 1 - Instrument Panel |
| S48D | S48D Multifunction Switch 2 - Instrument Panel |
The active safety system analyzes data from various sensors and modules to provide multiple features. It is made up of the following components:
- Active Safety Control Module
- Park Assist Switch and Indicator
- Lane Departure Warning Switch and Indicator
- Frontview Camera Module
- Radar Sensor Module - Short Range Left Front
- Radar Sensor Module - Short Range Right Front
- Radar Sensor Module - Long Range
- Radar Sensor Module - Short Range Rear
