Cadillac
>>
2015
>>
XTS Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
High Speed GMLAN (2 of 2)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
High Speed GMLAN (2 of 2)

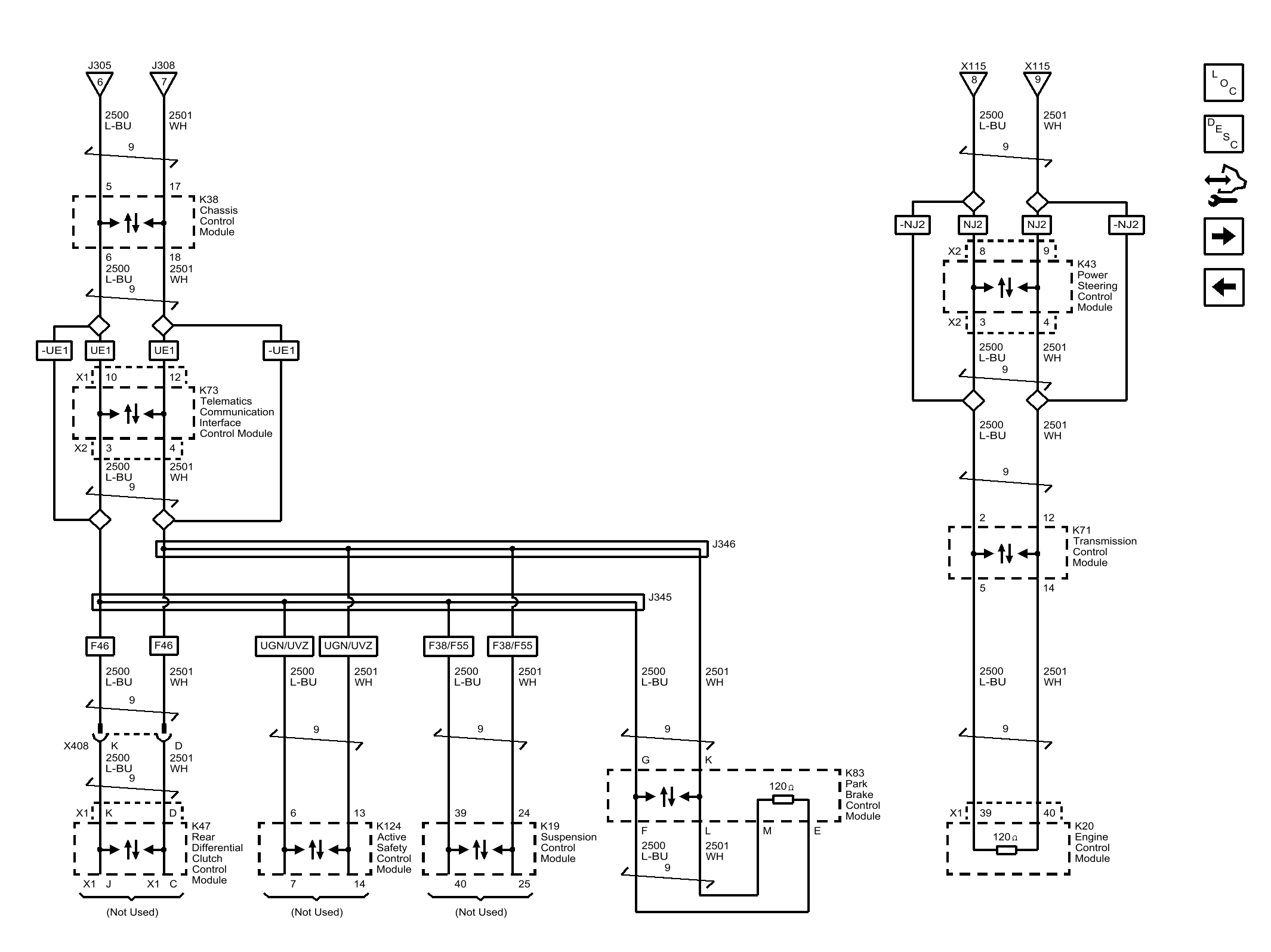

Fig 1: High Speed GMLAN (2 of 2)
Courtesy of GENERAL MOTORS COMPANY
