Object High Speed GMLAN (UGN with UVZ)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Object High Speed GMLAN (UGN with UVZ)

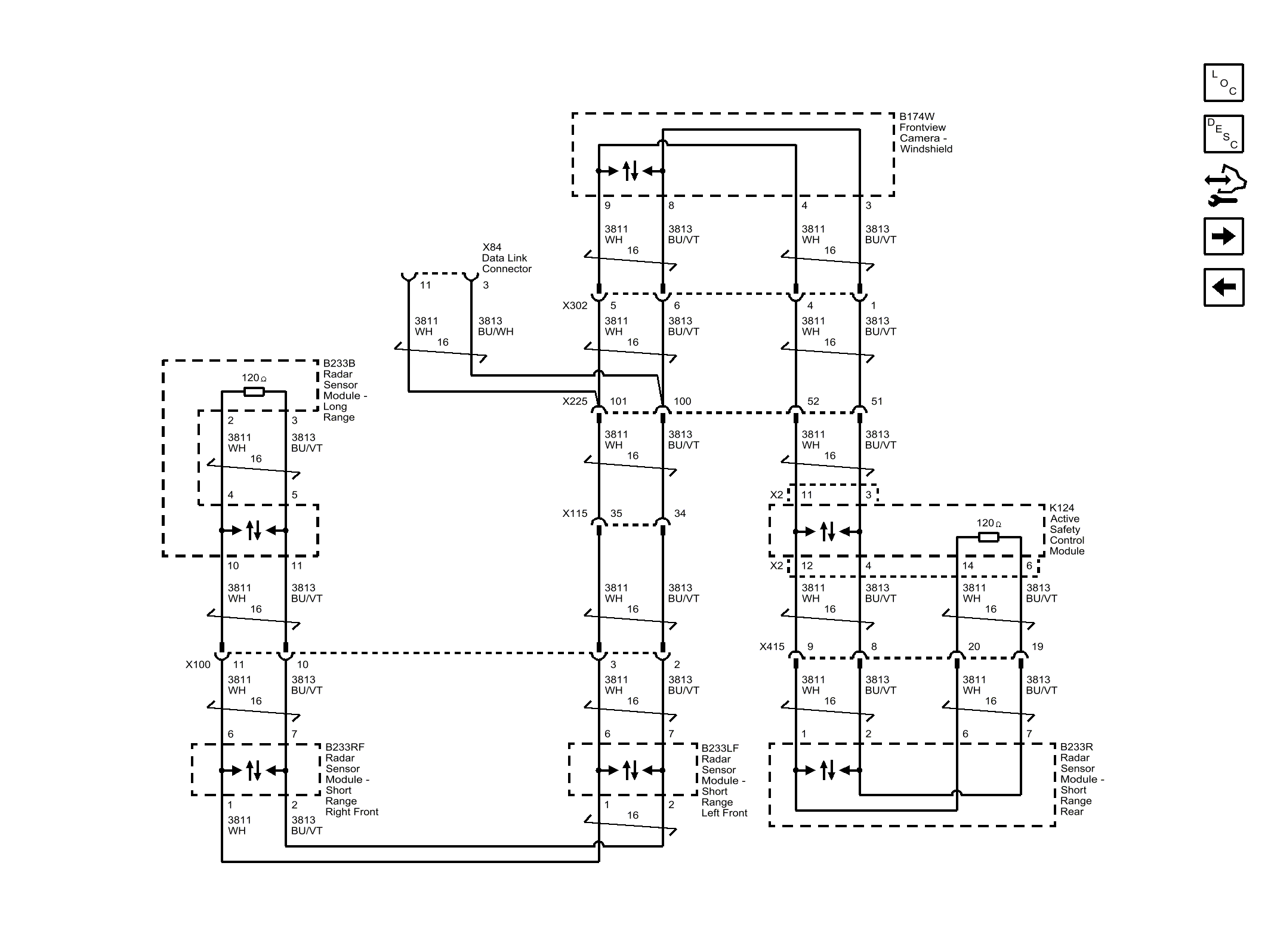

Fig 1: Object High Speed GMLAN (UGN with UVZ)
Courtesy of GENERAL MOTORS COMPANY
