Communication Interface Module Battery Replacement

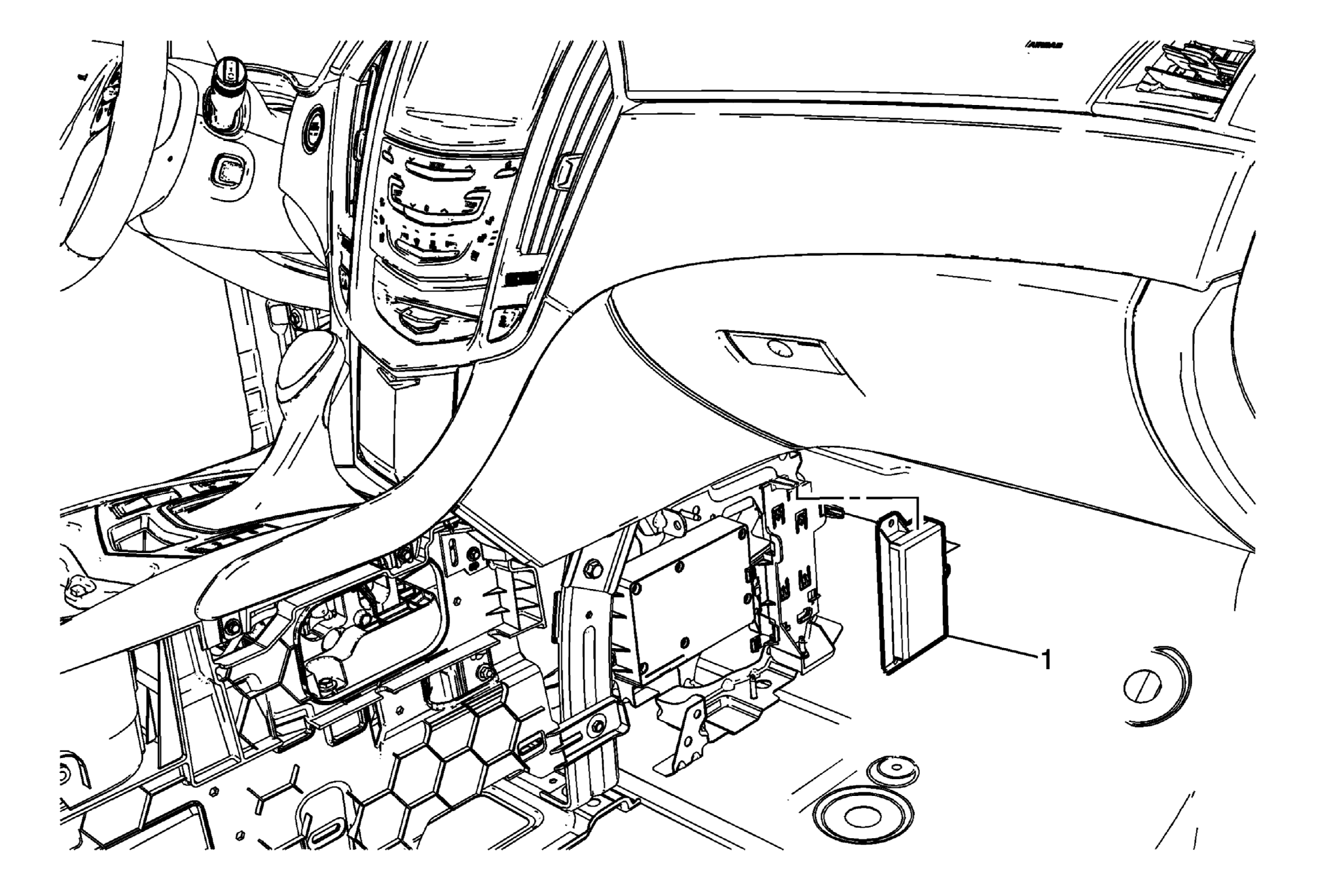

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console extension. Refer to Front Floor Console Extension Replacement .
1	Communication Interface Module Battery Procedure Disconnect the electrical connector. Unclip the module from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the front floor console extension. Refer to Front Floor Console Extension Replacement .

Communication Interface Module Battery

Procedure
