Human Machine Interface Control Module Power, Ground and Communication Signals

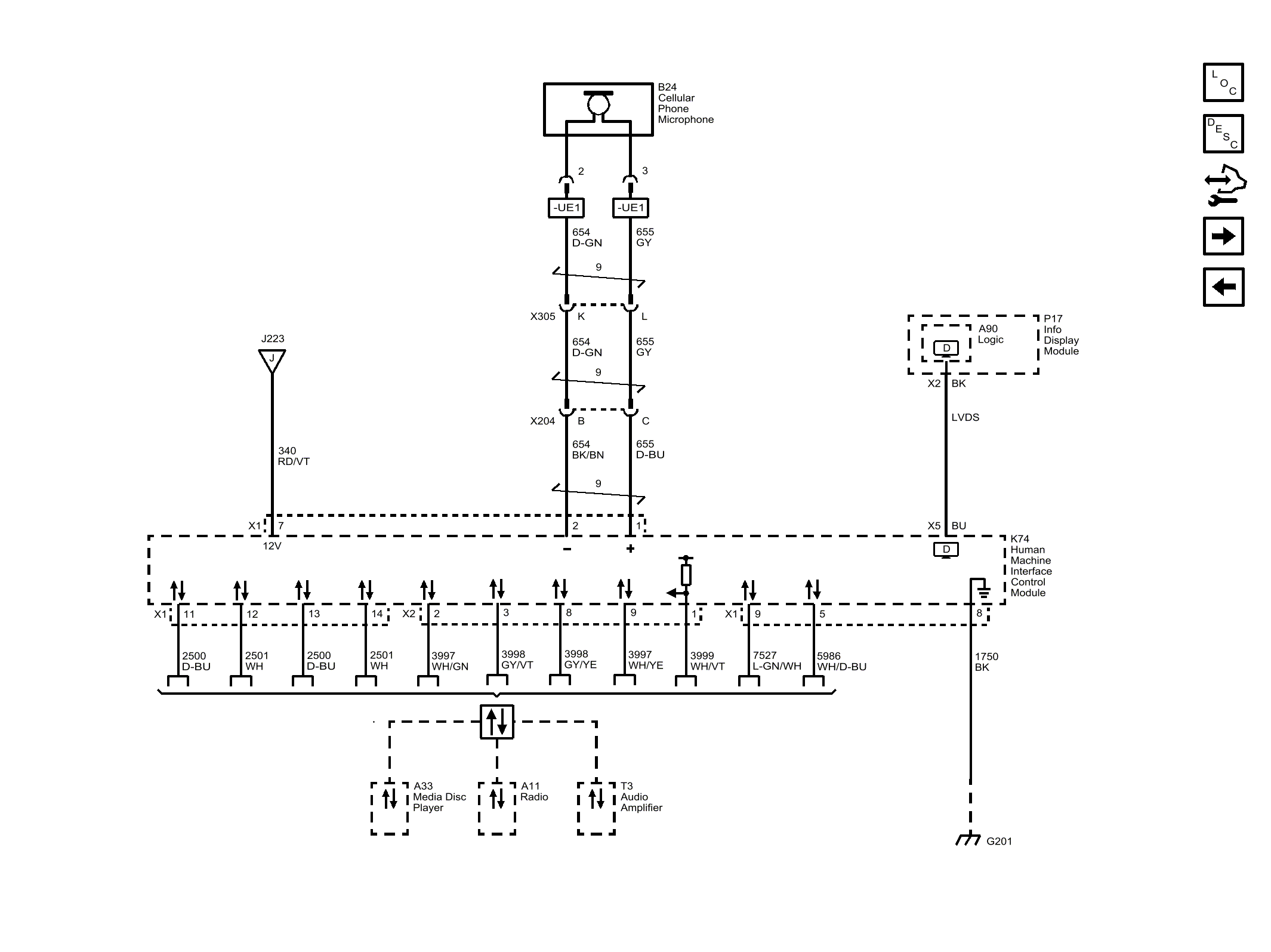

Fig 1: Human Machine Interface Control Module Power, Ground and Communication Signals
GM4082880Courtesy of GENERAL MOTORS COMPANY
