Door Lock/Indicator Wiring Schematics: Switches

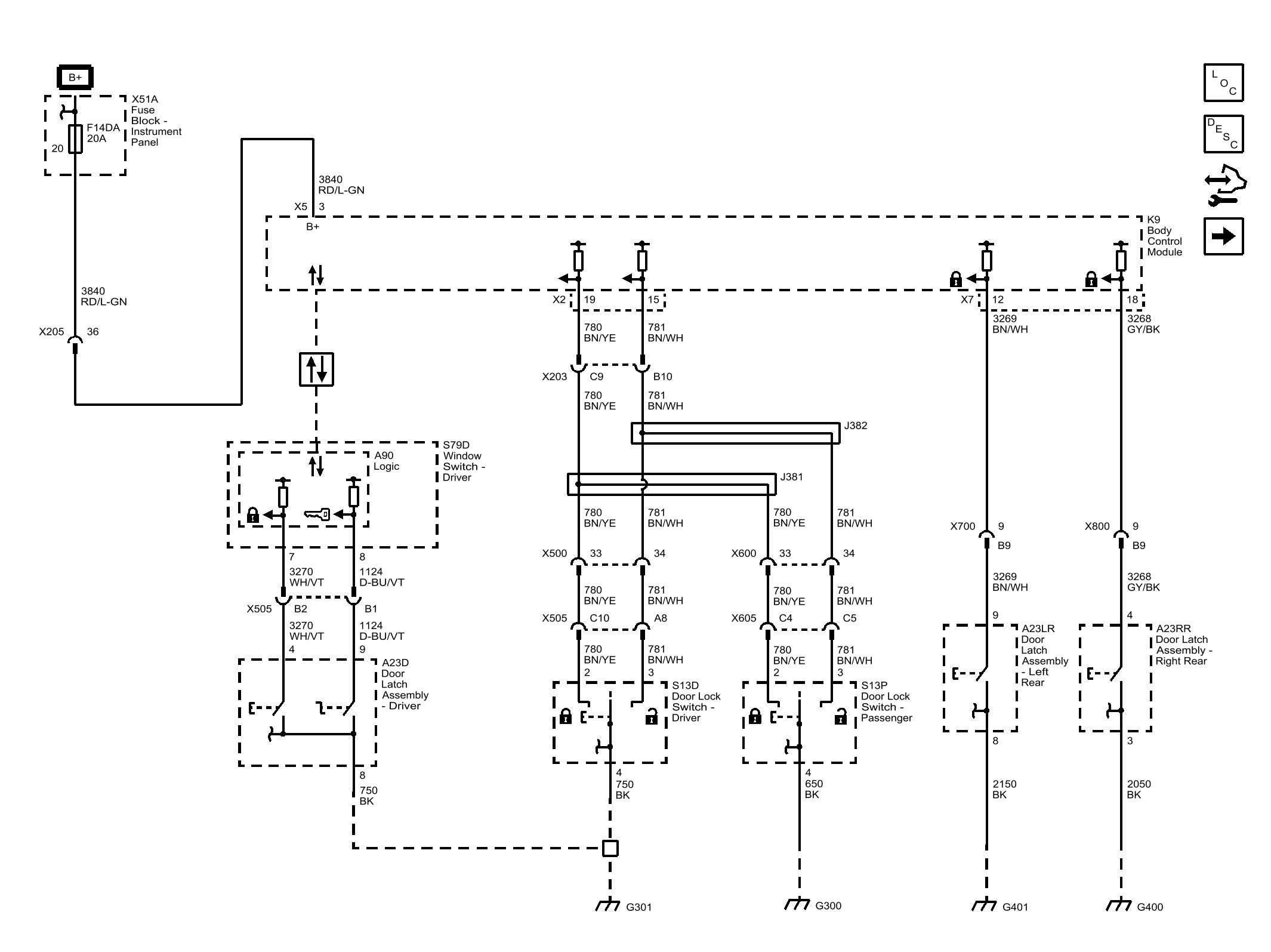

Fig 1: Switches
GM4082713Courtesy of GENERAL MOTORS COMPANY
