Installation Procedure

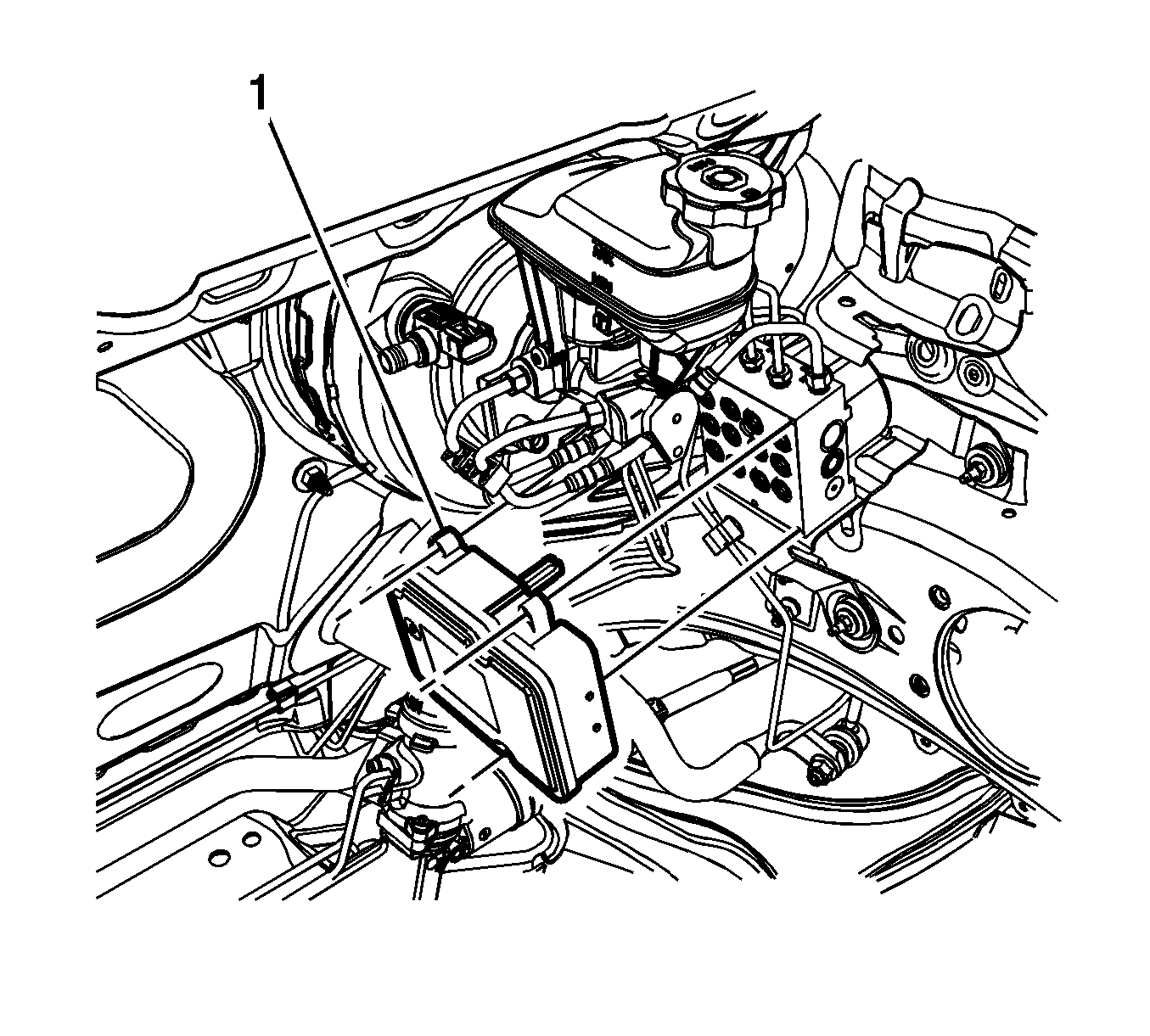

    Fig 1: EBCM & BPMV
    GM2217473Courtesy of GENERAL MOTORS COMPANY
  1. Install the EBCM seals, if removed.
  2. Install the EBCM (1) to the BPMV.

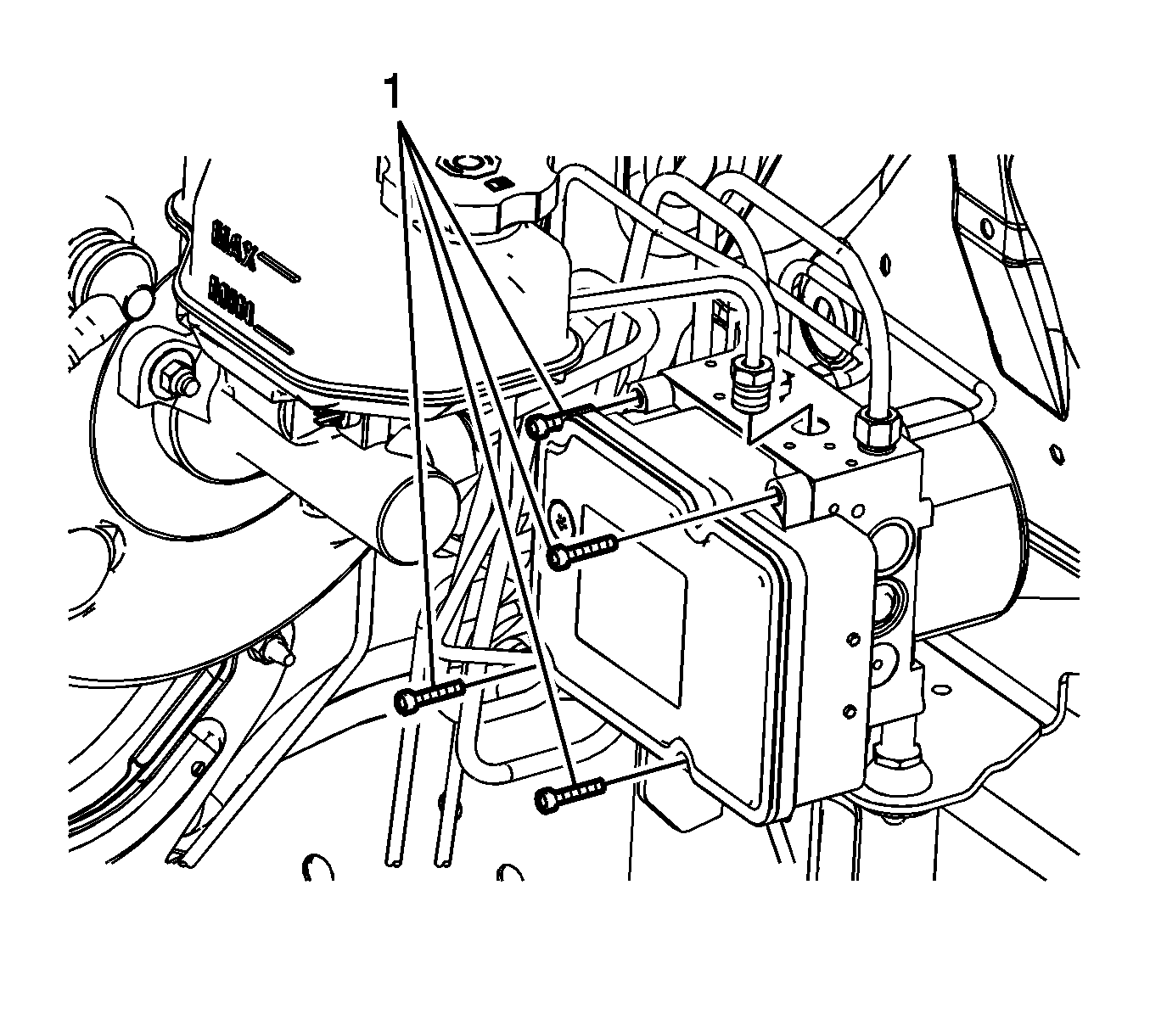

    3. Fig 2: EBCM Bolts
    GM1873922Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the EBCM bolts (1) and tighten in a cross pattern to 3 N.m (27 lb in).

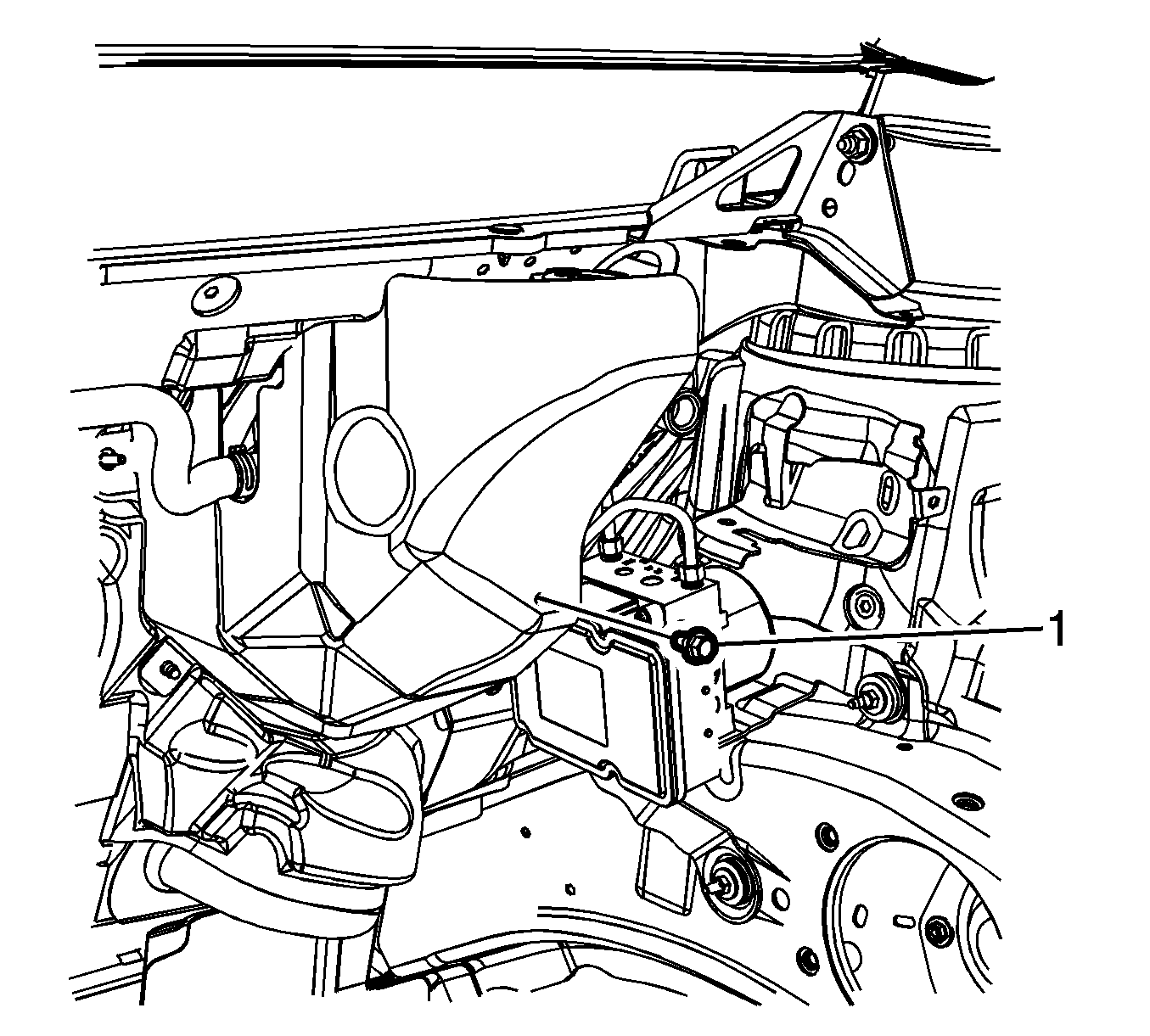

    4. Fig 3: Master Cylinder Heat Shield Bolt
    GM2219313Courtesy of GENERAL MOTORS COMPANY
  4. Install the master cylinder heat shield, if equipped.
  5. Install the master cylinder heat shield bolt (1) and tighten to 10 N.m (89 lb in).

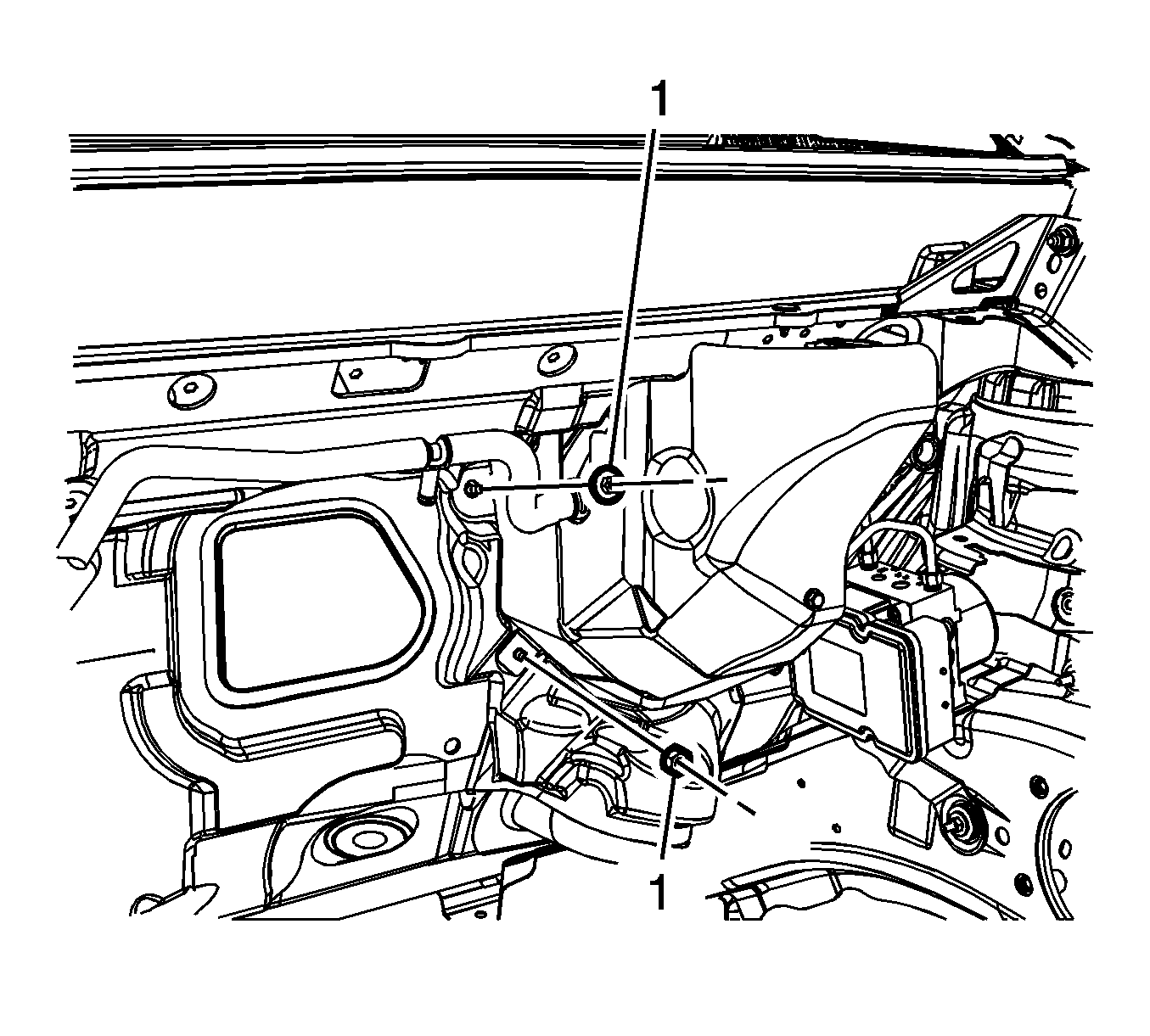

    6. Fig 4: Master Cylinder Heat Shield Nuts
    GM2219310Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Lift the dash panel insulator slightly to install the upper master cylinder heat shield nut.

  6. Install the master cylinder heat shield nuts (1) and tighten to 25 N.m (18 lb ft).
  7. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
  8. If installing a new EBCM, program the EBCM. Refer to Control Module References .
  9. Perform the Diagnostic System Check - Vehicle .
