Installation Procedure

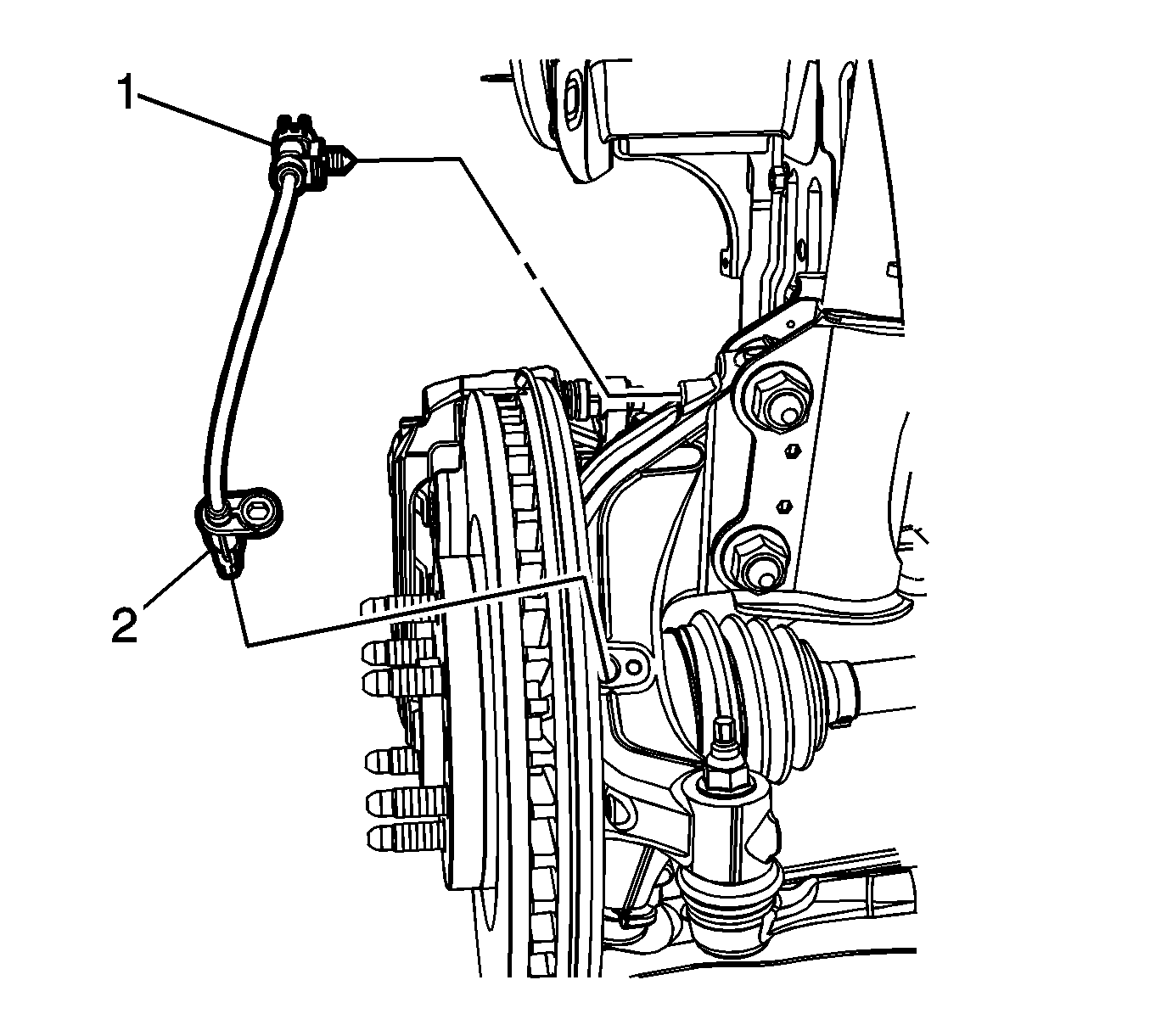

    Fig 1: Wheel Speed Sensor & Electrical Connector
    GM2217492Courtesy of GENERAL MOTORS COMPANY
  1. Connect the wheel speed sensor electrical connector (1) and secure the connector to the steering knuckle.
  2. Install the wheel speed sensor (2) to the steering knuckle.

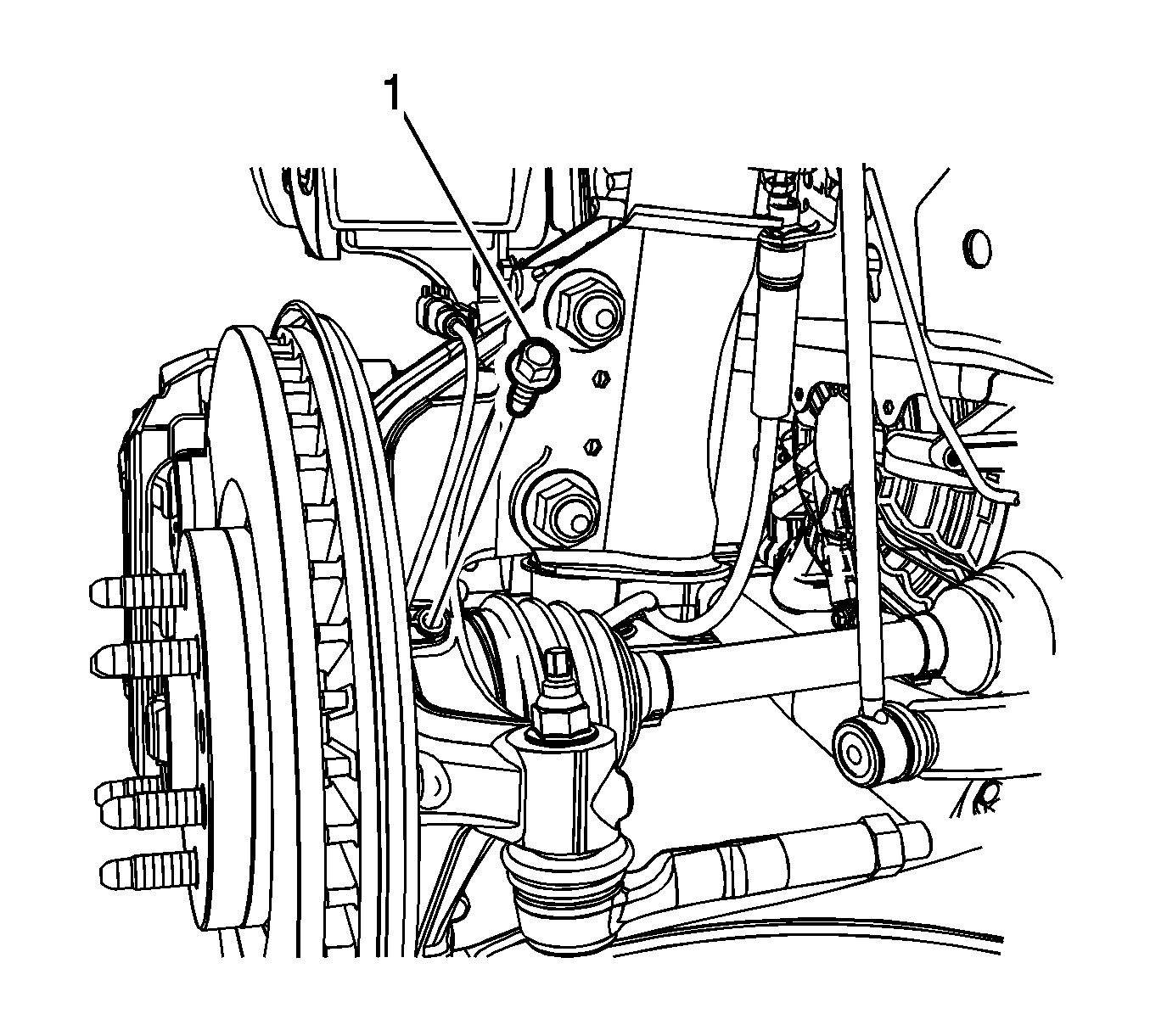

    3. Fig 2: Wheel Speed Sensor Bolt
    GM2217490Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  5. Perform the Diagnostic System Check - Vehicle .
