Side View Driver Information Camera Replacement

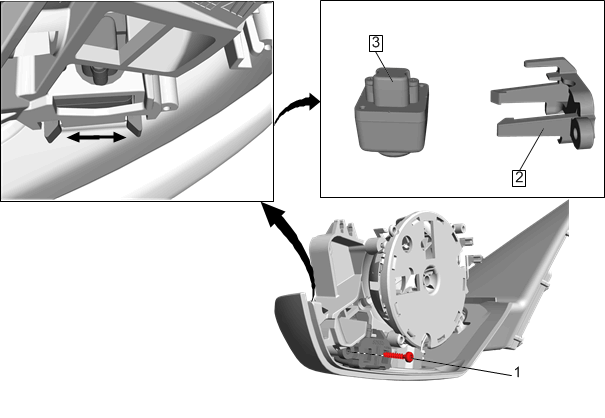

Fig 1: Side View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Outside Rearview Mirror Housing Upper Cover Replacement Outside Rearview Mirror Inner Actuator Replacement
1	Side View Driver Information Camera Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Side View Driver Information Camera Bracket
3	Side View Driver Information Camera Procedure Slide the camera out from the bracket. Disconnect the electrical connector. Video Processing Control Module Calibration
