Outside Rearview Mirror Inner Actuator Replacement

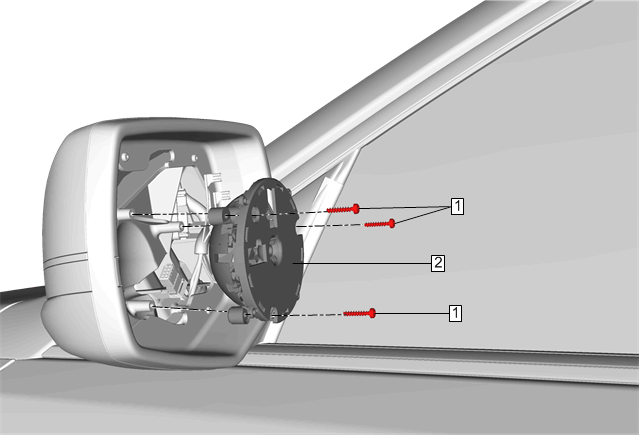

Fig 1: Outside Rearview Mirror Inner Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Outside Rearview Mirror Glass Replacement
1	Outside Rearview Mirror Inner Actuator Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 0.8 N.m (7 lb in)
2	Outside Rearview Mirror Inner Actuator Procedure Disconnect the electrical connector.
