Battery Negative Cable Replacement

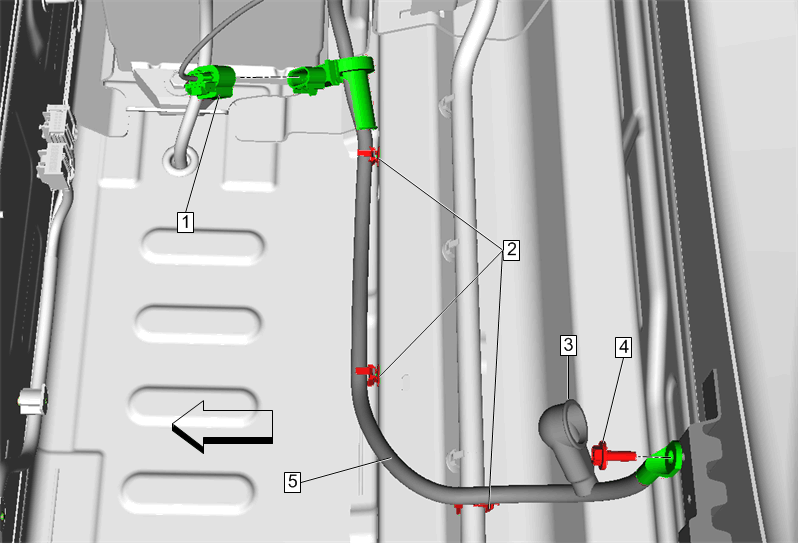

| Callout | Component Name |
|---|---|
| Preliminary Procedure Battery Negative Cable Disconnection and Connection |
|
| 1 | Battery Current Sensor Connector |
| 2 | Retainer [3x] |
| 3 | Protective Boot |
| 4 | Battery Negative Cable Ground Fastener
CAUTION:
Refer to Fastener Caution
. Tighten 22 N.m (16 lb ft) |
| 5 | Battery Negative Cable |
