Installation Procedure

  1. Battery Positive Cable (2)» Install
    Fig 1: Battery Positive Cable Nut
    GM4248669Courtesy of GENERAL MOTORS COMPANY
  2. Battery Positive Cable Nut (1)» Install and tighten 22 N.m (16 lb ft)
    CAUTION: Refer to Fastener Caution
  3. Power Distributor Fuse Block Cover (1)» Install
    Fig 2: Power Distributor Fuse Block Cover
    GM4248667Courtesy of GENERAL MOTORS COMPANY
  4. Retainer (1)» Engage [9x]

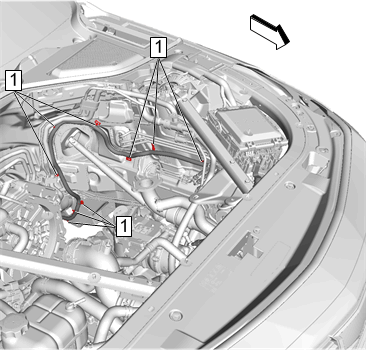

    Fig 3: Retainers
    GM4476230Courtesy of GENERAL MOTORS COMPANY
  5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  6. Retainer (2)» Engage [5x]

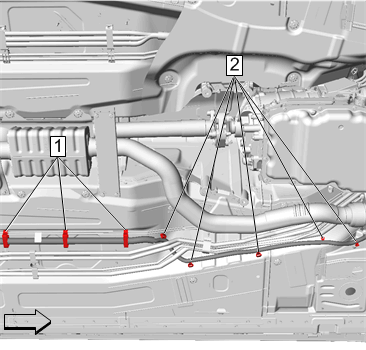

    Fig 4: Clips And Retainers
    GM4476229Courtesy of GENERAL MOTORS COMPANY
  7. Secure the clips. (2) [3x]
  8. Secure the clips. (1) [4x]

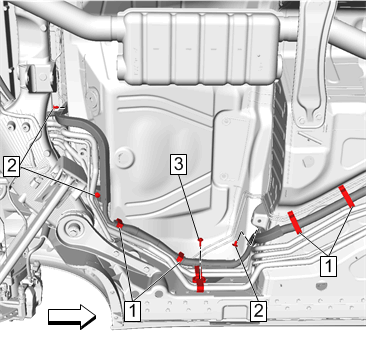

    Fig 5: Auxiliary A/C Evaporator Tube Bracket Fastener, Clips And Retainers
    GM4476227Courtesy of GENERAL MOTORS COMPANY
  9. Install the auxiliary A/C evaporator tube bracket fastener. (3) Tighten 9 N.m (80 lb in)
  10. Retainer (2)» Engage [3x]
  11. Retainer (1)» Engage [6x]

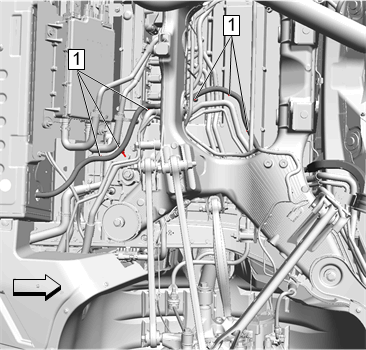

    Fig 6: Retainers
    GM4476226Courtesy of GENERAL MOTORS COMPANY
  12. Feed the battery positive cable through rear compartment opening.
  13. Fuel Tank (1)» Install - Fuel Tank Replacement
    Fig 7: Fuel Tank
    GM4256760Courtesy of GENERAL MOTORS COMPANY
  14. Front Body Exhaust Heat Shield - Left (3)» Install - Front Body Exhaust Heat Shield Replacement (Right Side, LTG)Front Body Exhaust Heat Shield Replacement (Left Side, LTG)Front Body Exhaust Heat Shield Replacement (Right Side, LGW, LGX)Front Body Exhaust Heat Shield Replacement (Left Side, LGW, LGX)

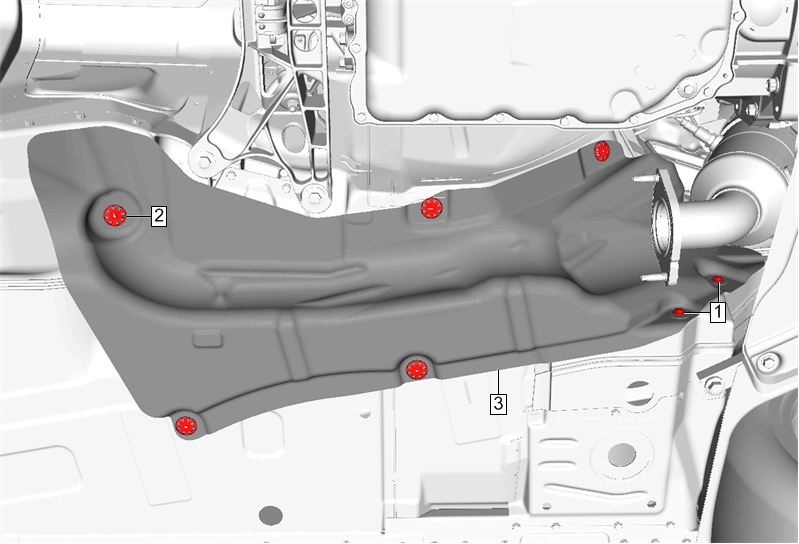

    Fig 8: Front Body Exhaust Heat Shield
    GM4320311Courtesy of GENERAL MOTORS COMPANY
  15. Lower the vehicle.
  16. Rubber Grommet (3)» Install

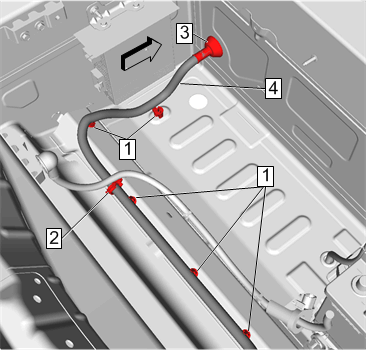

    Fig 9: Retainers, Rubber Grommet And Retainer Clip
    GM4476225Courtesy of GENERAL MOTORS COMPANY
  17. Retainer (1)» Engage [4x]
  18. Retainer Clip (2)» Engage
  19. Battery Positive Cable (2)» Install
    Fig 10: Battery Positive Cable Nut
    GM4476251Courtesy of GENERAL MOTORS COMPANY
  20. Battery Positive Cable Nut (1)» Install and tighten 15 N.m (11 lb ft)
  21. Retainer (3)» Engage
  22. Battery Distribution Fuse Block Cover (3)» Install
    Fig 11: Battery Distribution Fuse Block Cover
    GM4475465Courtesy of GENERAL MOTORS COMPANY
  23. Battery Distribution Fuse Block Cover Retainer (1)» Engage [2x]
  24. Battery Distribution Fuse Block Cover Fastener (2)» Install and tighten 9 N.m (80 lb in)
  25. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
  26. Rear Compartment Floor Stowage Compartment Tray (2)» Remove - Rear Compartment Floor Stowage Compartment Tray Replacement (With HP9)

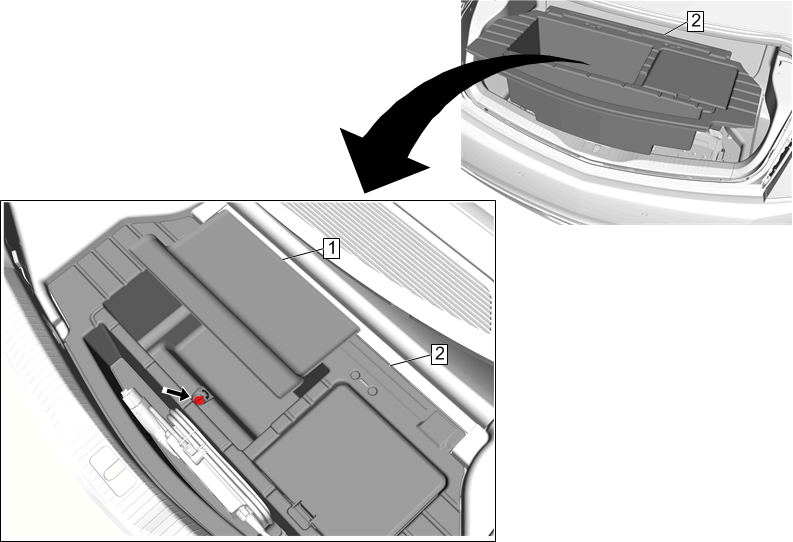

    Fig 12: Rear Compartment Floor Stowage Compartment Tray (With HP9)
    GM4497776Courtesy of GENERAL MOTORS COMPANY
