Installation Procedure

  1. Battery (1)» Install
    Fig 1: Battery
    GM4247271Courtesy of GENERAL MOTORS COMPANY
  2. Battery Vent Tube (2)» Engage

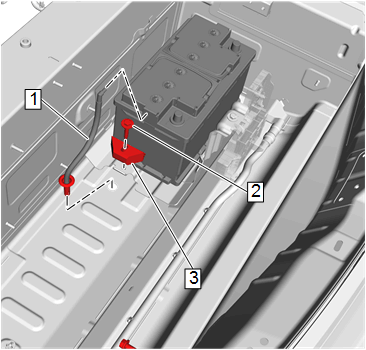

    Fig 2: Battery Vent Tube And Battery Hold Down Bolt
    GM4247269Courtesy of GENERAL MOTORS COMPANY
  3. Battery Hold Down Retainer (3)» Install
  4. Battery Hold Down Bolt (1)» Install and tighten 22 N.m (16 lb ft)
    CAUTION: Refer to Fastener Caution
  5. Battery Hold Down Strap (2)» Install

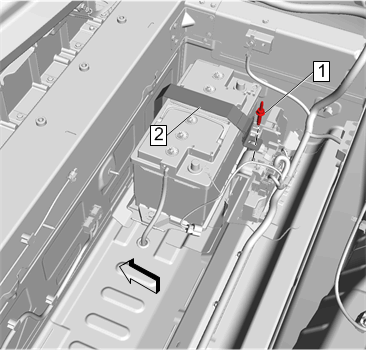

    Fig 3: Battery Hold Down Strap Fastener
    GM4475467Courtesy of GENERAL MOTORS COMPANY
  6. Battery Hold Down Strap Fastener (1)» Install and tighten 9 N.m (80 lb in)
  7. Battery Positive Cable (3)» Install
    Fig 4: Battery Positive Post Cover And Clamp Nut
    GM4475490Courtesy of GENERAL MOTORS COMPANY
  8. Battery Positive Post Clamp Nut (1)» Tighten 6 N.m (53 lb in)
  9. Battery Positive Post Cover (2)» Install
  10. Battery Distribution Fuse Block Cover (3)» Install
    Fig 5: Battery Distribution Fuse Block Cover
    GM4475465Courtesy of GENERAL MOTORS COMPANY
  11. Battery Distribution Fuse Block Cover Retainer (1)» Engage [2x]
  12. Battery Distribution Fuse Block Cover Fastener (2)» Install and tighten 9 N.m (80 lb in)
  13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
