Communication Interface Module Battery Replacement (UE1 with IO5, IO6)

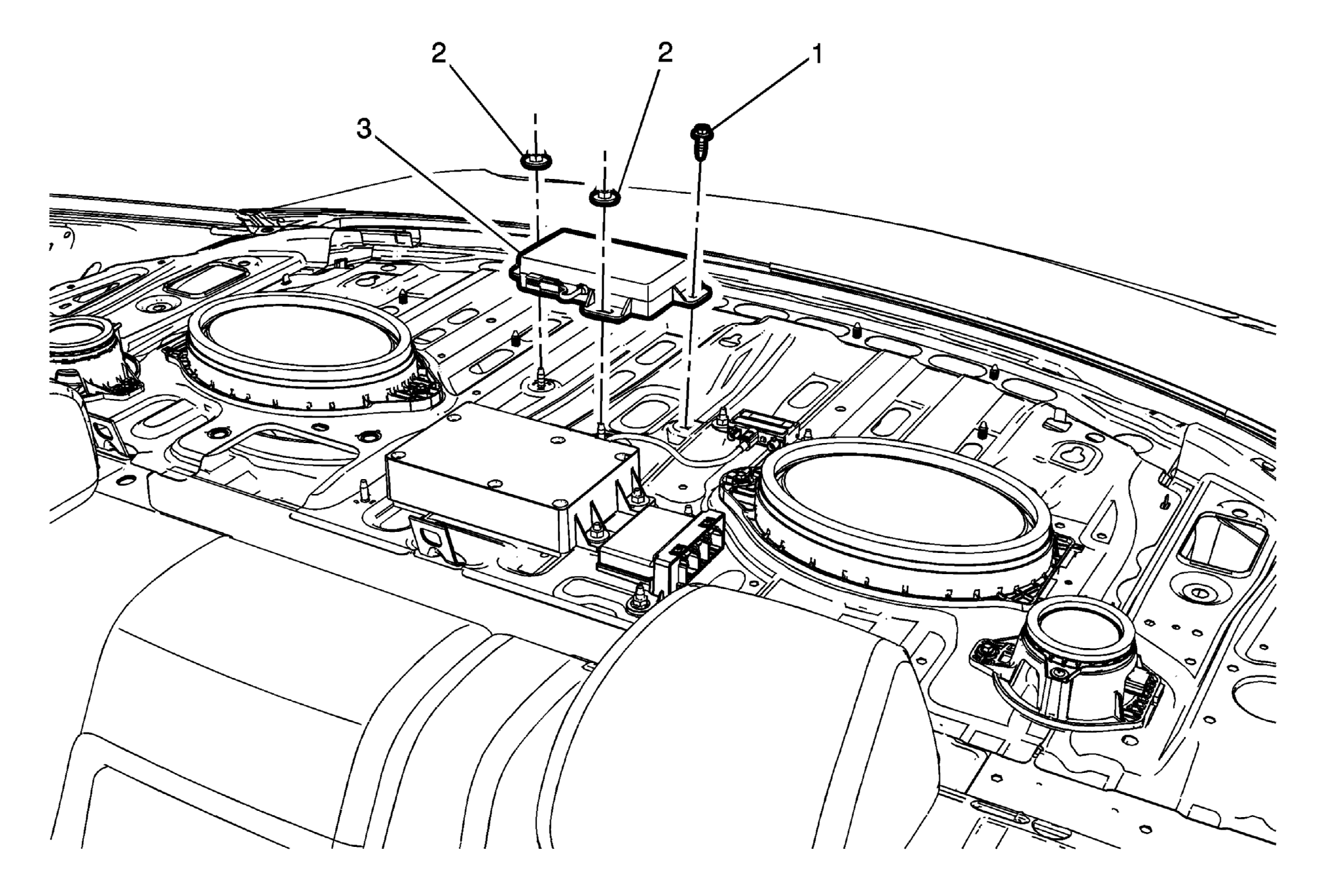

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (With DB3)Rear Window Panel Trim Replacement (Without DB3) . |
|
| 1 | Communication Interface Module Battery Bolt
CAUTION:
Refer to Fastener Caution . Tighten 4.0 N.m (35 lb in) |
| 2 | Communication Interface Module Battery Nuts (Qty: 2) Tighten 6.0 N.m (53 lb in) |
| 3 | Communication Interface Module Battery Procedure Disconnect the electrical connector. |
