Human Machine Interface and Display, Power, Ground, Serial Data and Microphone

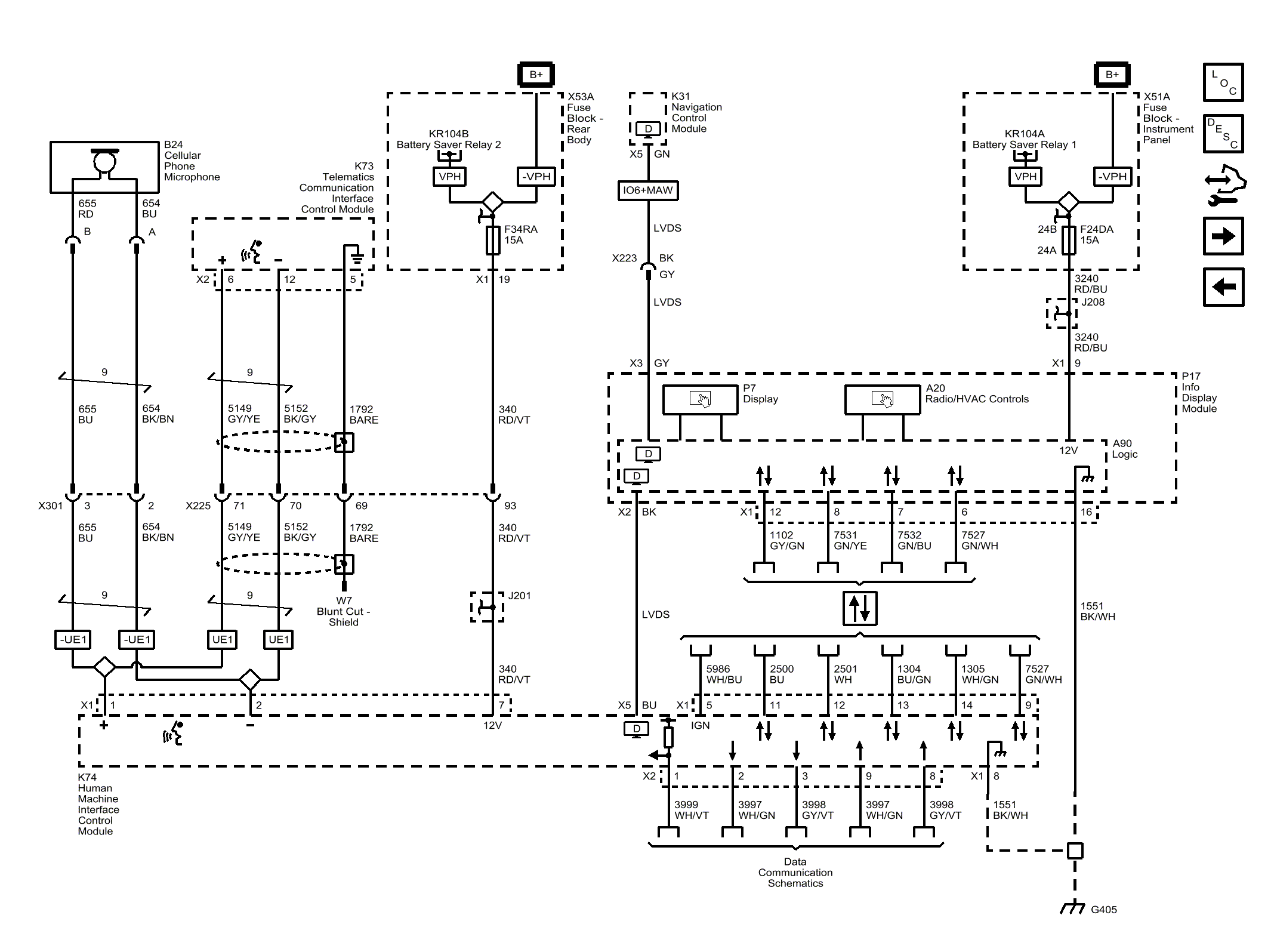

Fig 1: Human Machine Interface and Display, Power, Ground, Serial Data and Microphone
GM4492809Courtesy of GENERAL MOTORS COMPANY
