Cellular System, Entertainment System, And Navigation System - Schematic And Routing Diagrams
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics (IO5/IO6)
>>
Navigation Power, Ground, Serial Data and Signals (IO6+MAW)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Navigation Power, Ground, Serial Data and Signals (IO6+MAW)

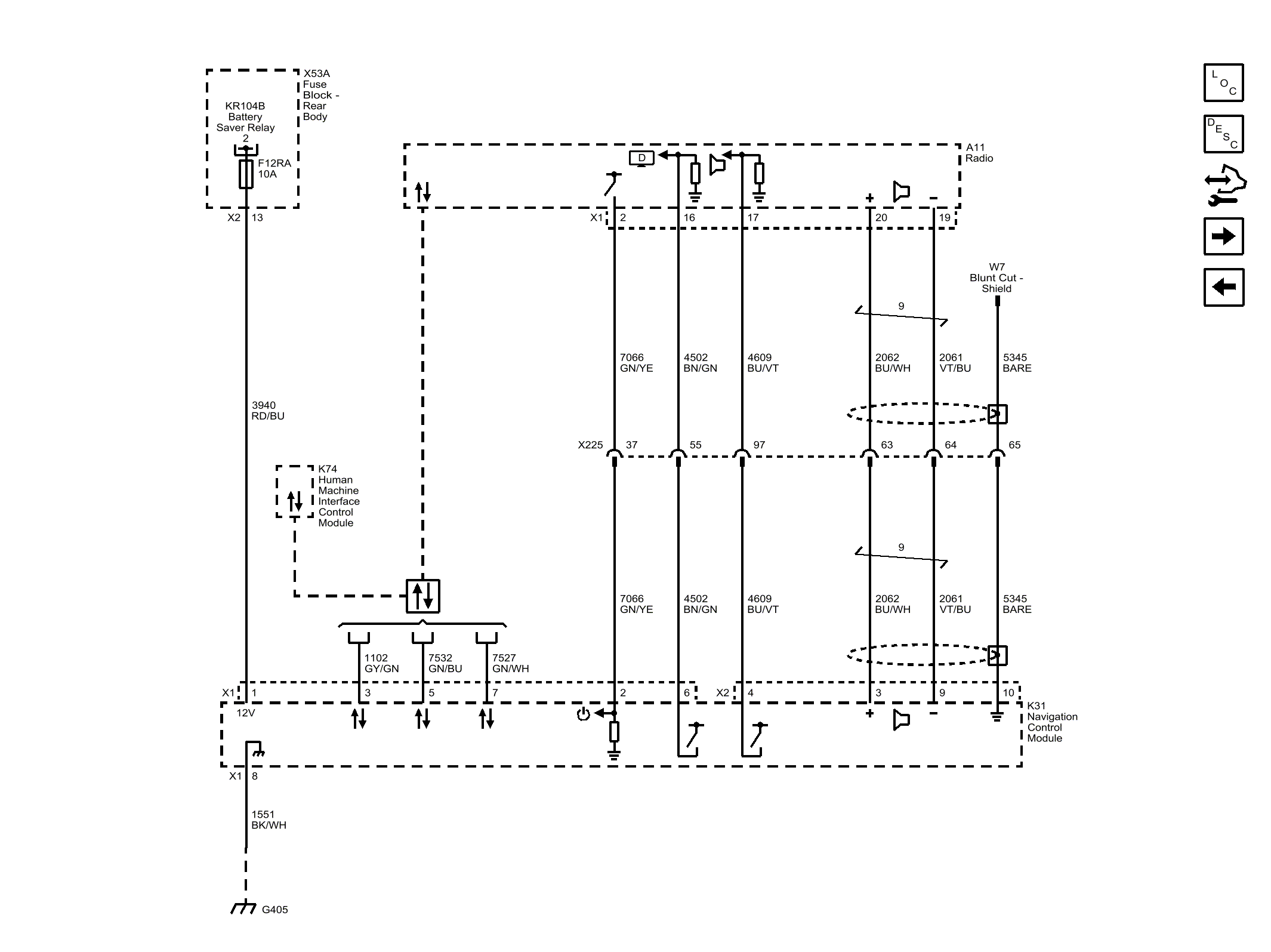

Fig 1: Navigation Power, Ground, Serial Data and Signals (IO6+MAW)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
