Side View Driver Information Camera Replacement

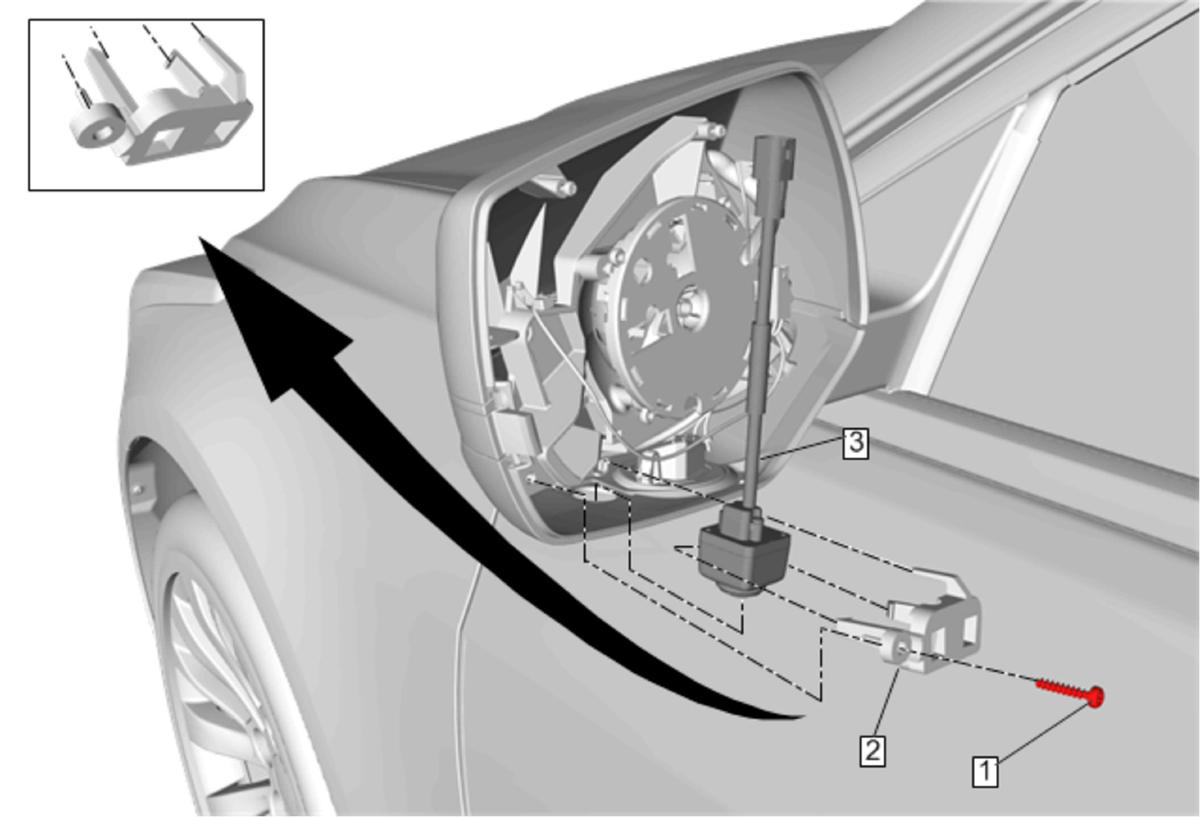

Fig 1: Side View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Outside Rearview Mirror Housing Bezel Replacement (North America)Outside Rearview Mirror Housing Bezel Replacement (Except North America)
1	Side View Driver Information Camera Bolt CAUTION: Fastener Caution . Tighten 1 N.m (9 lb in)
2	Side View Driver Information Camera Bracket Procedure Raise camera and bracket slightly and pull the camera and bracket out from the out side rear view mirror. NOTE: Use care when working with side view driver information camera bracket, it is not serviced separately from the out side rear view mirror.
3	Side View Driver Information Camera Procedure Disengage the retaining tab that secures the camera to the bracket. Disconnect the electrical connector.
