Curb View Vision - Power, Ground, Serial Data and Rear Camera (UVJ)

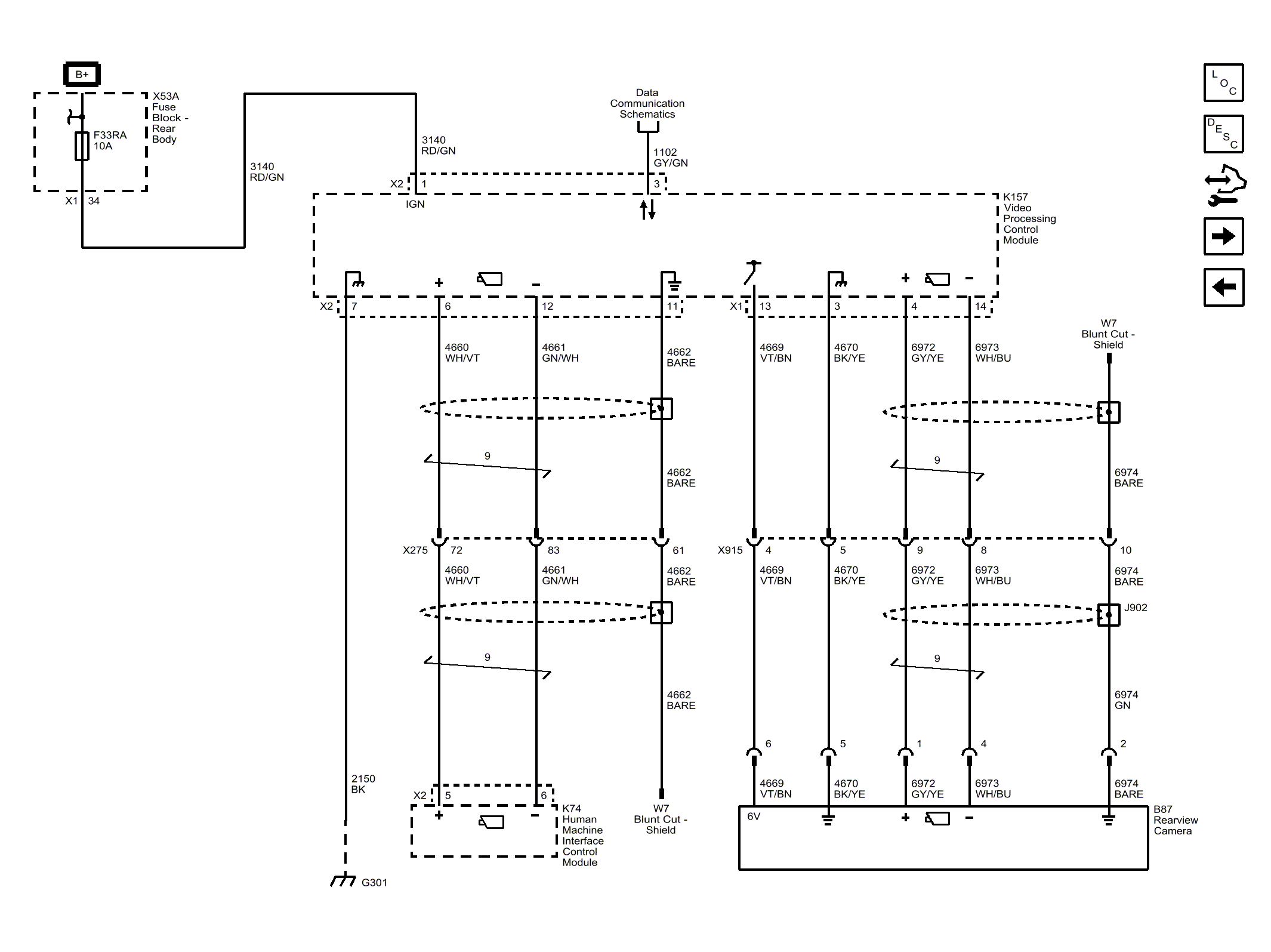

Fig 1: Curb View Vision - Power, Ground, Serial Data and Rear Camera (UVJ)
GM4493569Courtesy of GENERAL MOTORS COMPANY
