Rear Cross Traffic Alert (UFG) and Side Object Detection (UKC)

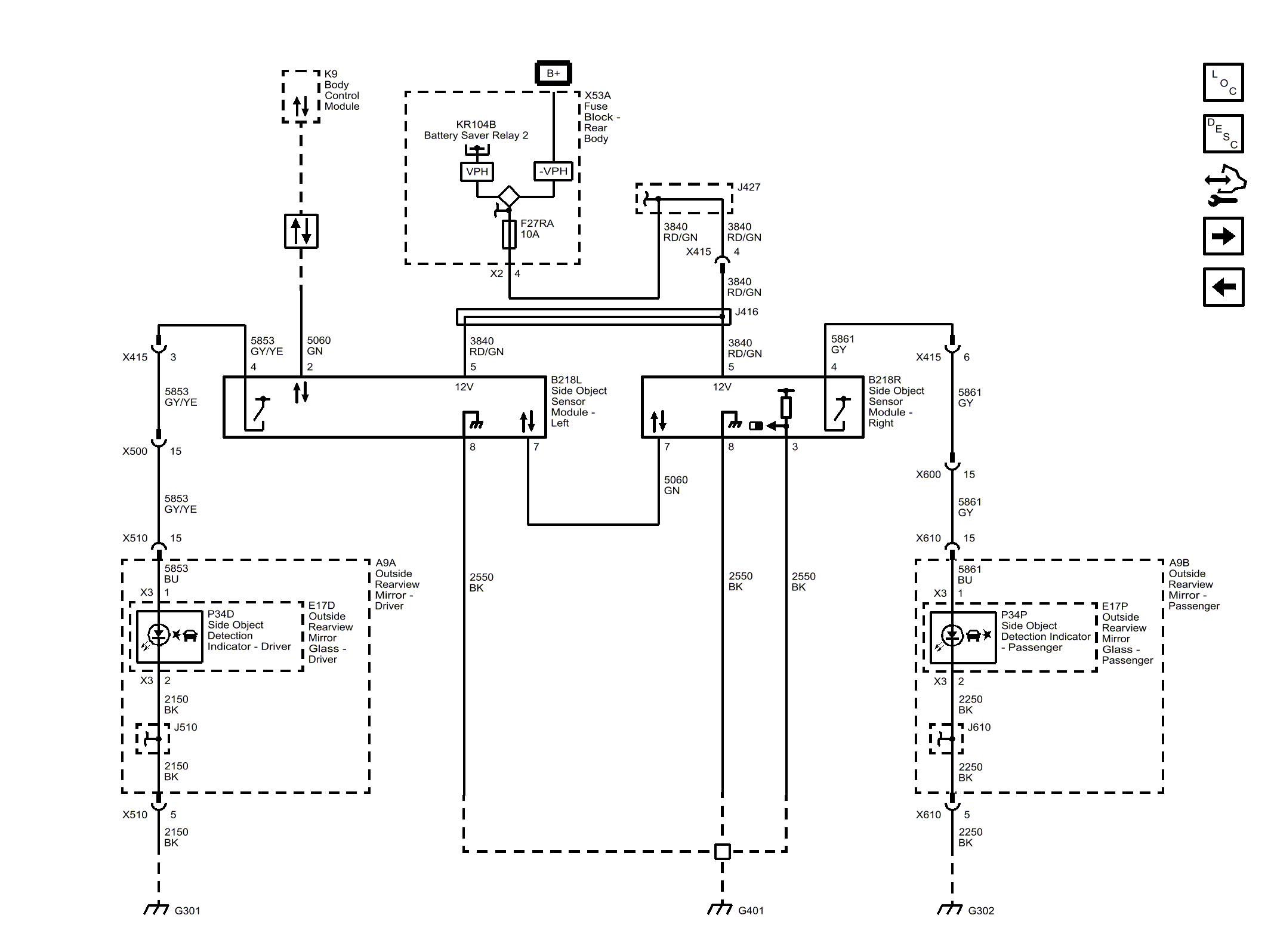

Fig 1: Rear Cross Traffic Alert (UFG) and Side Object Detection (UKC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
