Accessory AC and DC Power Control Module Replacement

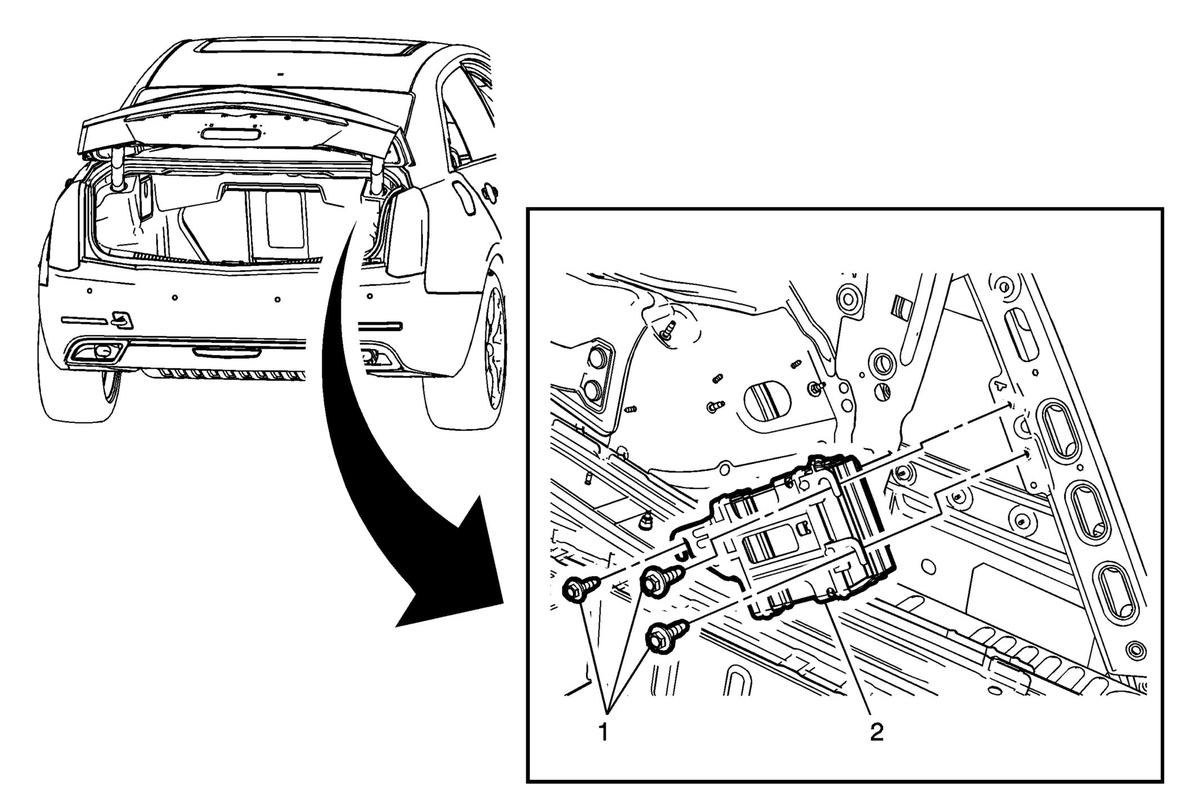

Fig 1: Accessory AC and DC Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side .
1	Accessory AC and DC Power Control Module Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Reposition the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side .

Accessory AC and DC Power Control Module Fasteners (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Accessory AC and DC Power Control Module

Procedure
