Removal Procedure

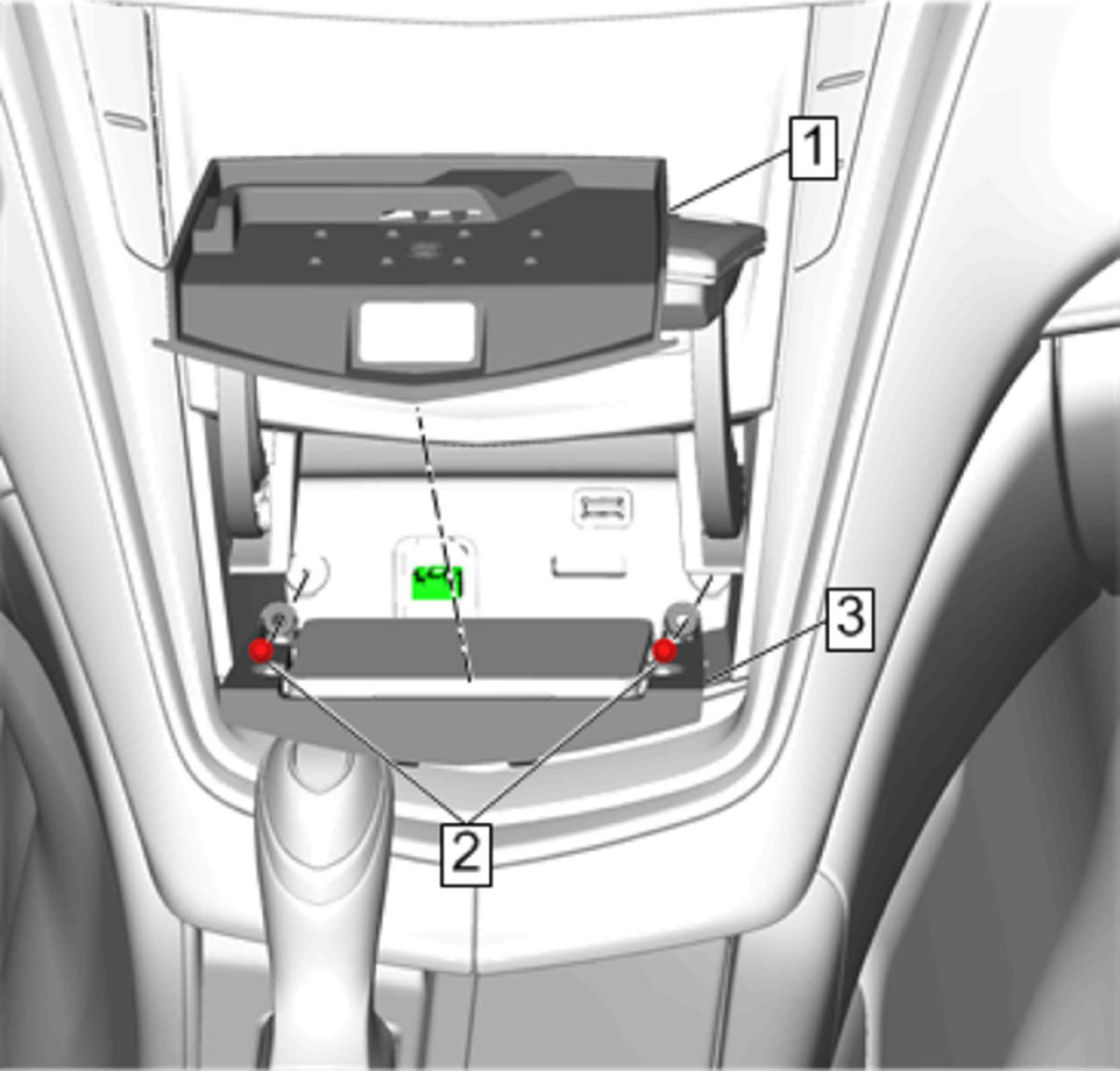

    Fig 1: Instrument Panel Center Compartment Liner And Wireless Charging System Module Bracket Bolt
    GM4789530Courtesy of GENERAL MOTORS COMPANY
  1. Remove Instrument Panel Center Compartment Liner (1)
  2. Remove Wireless Charging System Module Bracket Bolt (2) (Qty: 2)
  3. Disconnect the electrical connector.
  4. Remove Wireless Charging System Module Bracket (3)

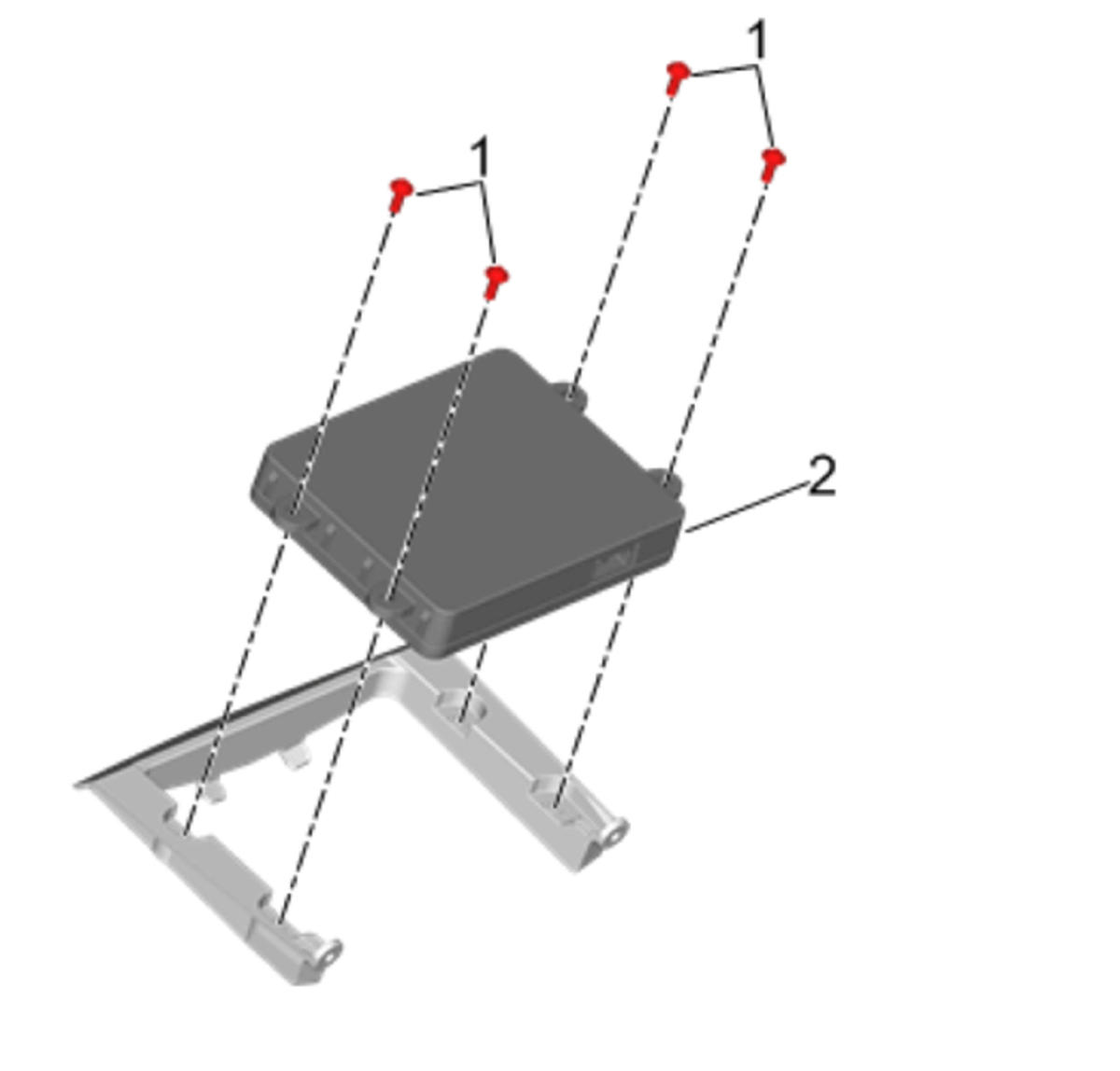

    5. Fig 2: Wireless Charging System Module And Bracket Bolt
    GM4789534Courtesy of GENERAL MOTORS COMPANY
  5. Remove Wireless Charging System Module Bracket Bolt (1) (Qty: 4)
  6. Remove Wireless Charging System Module (2)
