Radio Power, Ground and Serial Data
WARNING:
This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

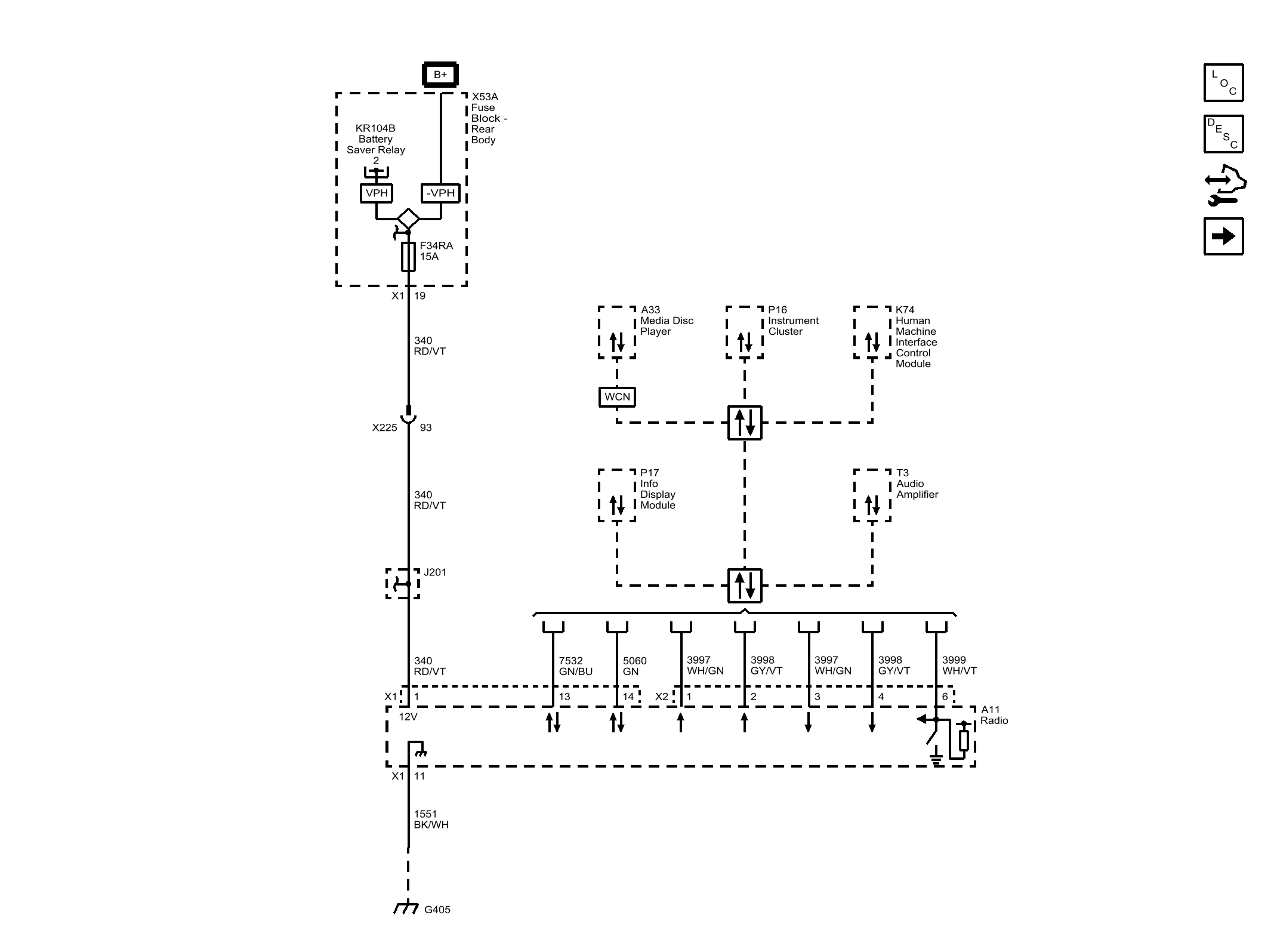

Fig 1: Radio Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
