Pedestrian Impact Detection Module Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

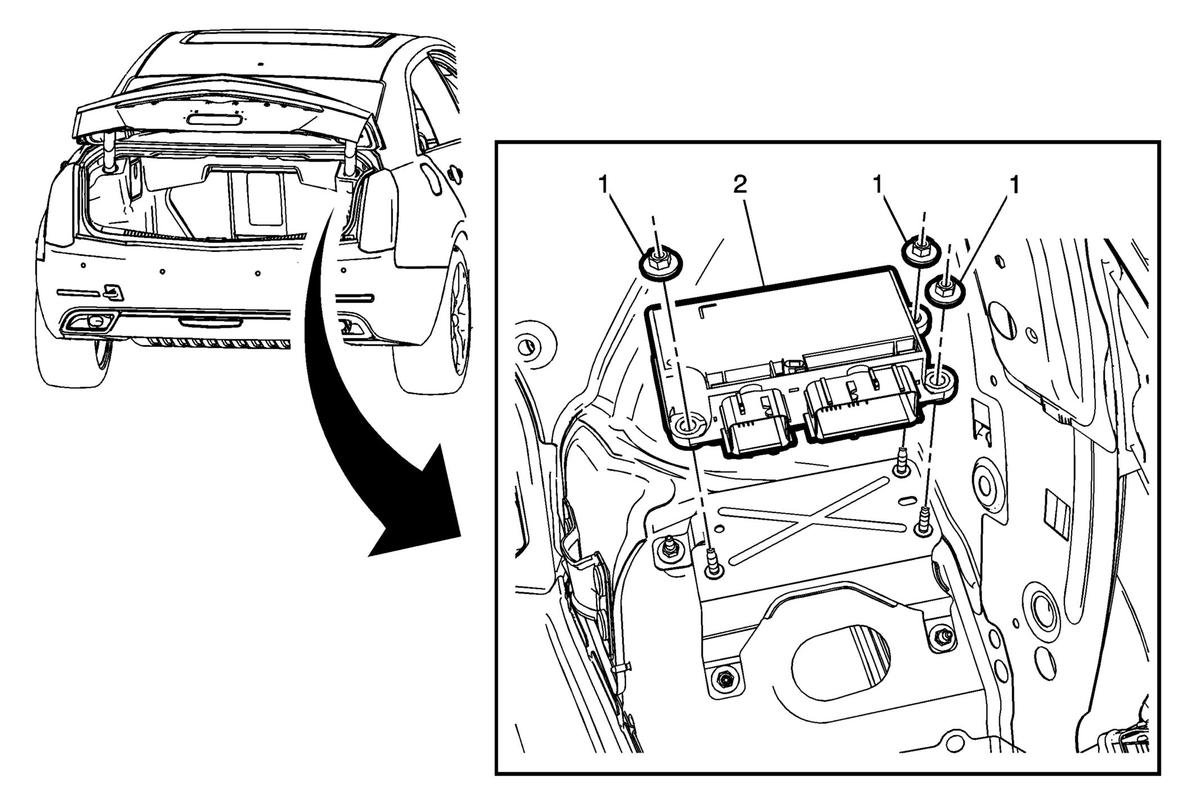

Fig 1: Pedestrian Impact Detection Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side .
1	Pedestrian Impact Detection Module Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Pedestrian Impact Detection Module Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side .

Pedestrian Impact Detection Module Fasteners (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Pedestrian Impact Detection Module

Procedure

Disconnect the electrical connectors.
For programming and set up information, refer to Control Module References .
