Installation Procedure

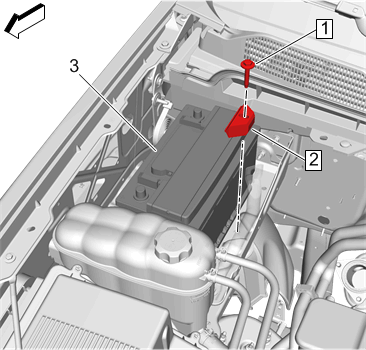

    Fig 1: Battery Hold Down Retainer And Retainer
    GM4791096Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery (3)
  2. Install Battery Hold Down Retainer (2)
    3. CAUTION:

    Refer to Fastener Caution

  3. Install Battery Hold Down Bolt (1) and tighten 25 N.m (18 lb ft)

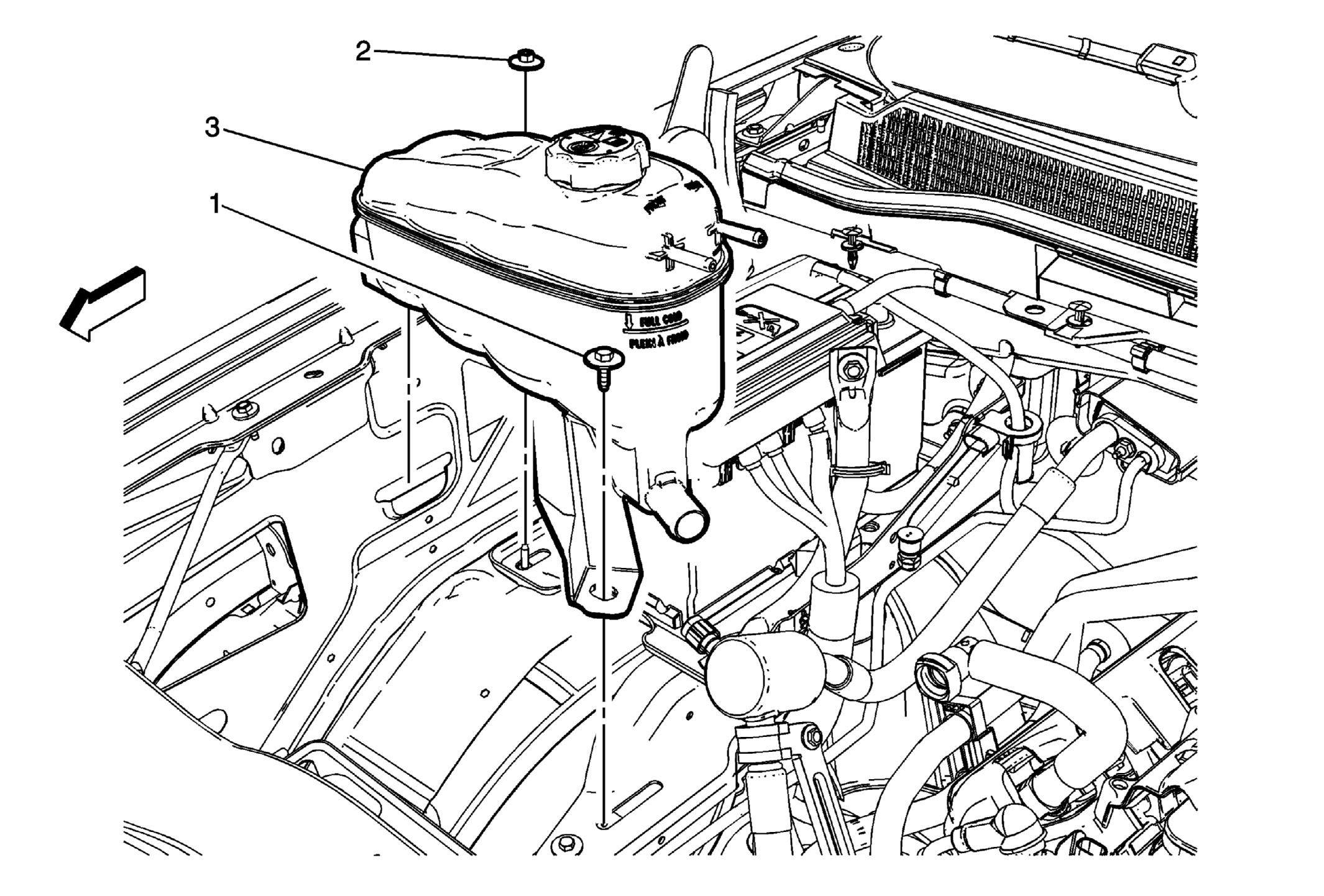

    4. Fig 2: Radiator Surge Tank (LV3)
    GM3228565Courtesy of GENERAL MOTORS COMPANY
  4. If necessary, install the radiator surge tank (3). Radiator Surge Tank Replacement (L83 L86)Radiator Surge Tank Replacement (L96)

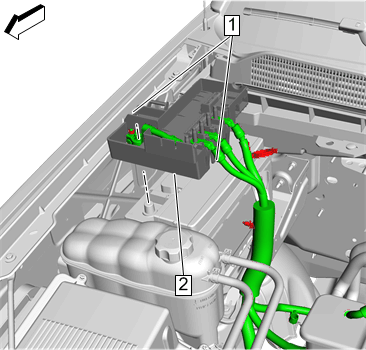

    5. Fig 3: Battery Distribution Engine Compartment Fuse Block
    GM4791152Courtesy of GENERAL MOTORS COMPANY
  5. Install Battery Distribution Engine Compartment Fuse Block (2)Battery Distribution Engine Compartment Fuse Block Replacement (without K4B, KHB, NV8)Battery Distribution Engine Compartment Fuse Block Replacement (with K4B, KHB)Battery Distribution Engine Compartment Fuse Block Replacement (NV8)
  6. Engage Retaining Tab (1)

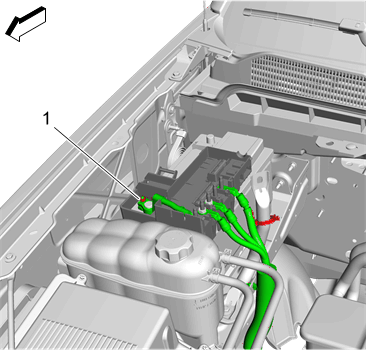

    7. Fig 4: Battery Positive Post Clamp Nut
    GM4791090Courtesy of GENERAL MOTORS COMPANY
  7. Battery Positive Post Clamp Nut (1) Tighten 7 N.m (62 lb in)

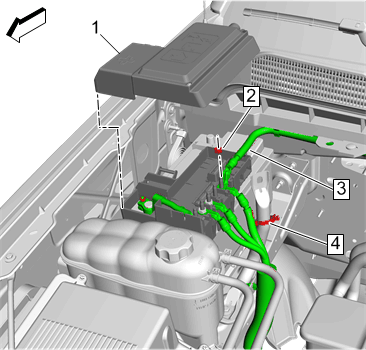

    8. Fig 5: Battery Distribution Engine Compartment Fuse Block Cover And Battery Positive Cabl
    GM4791087Courtesy of GENERAL MOTORS COMPANY
  8. Install Battery Positive Cable (3)
  9. Install Battery Positive Cable Nut (3) and tighten 15 N.m (11 lb ft)
  10. Install Battery Distribution Engine Compartment Fuse Block Cover (1)
  11. Engage Retainer Clip (4)

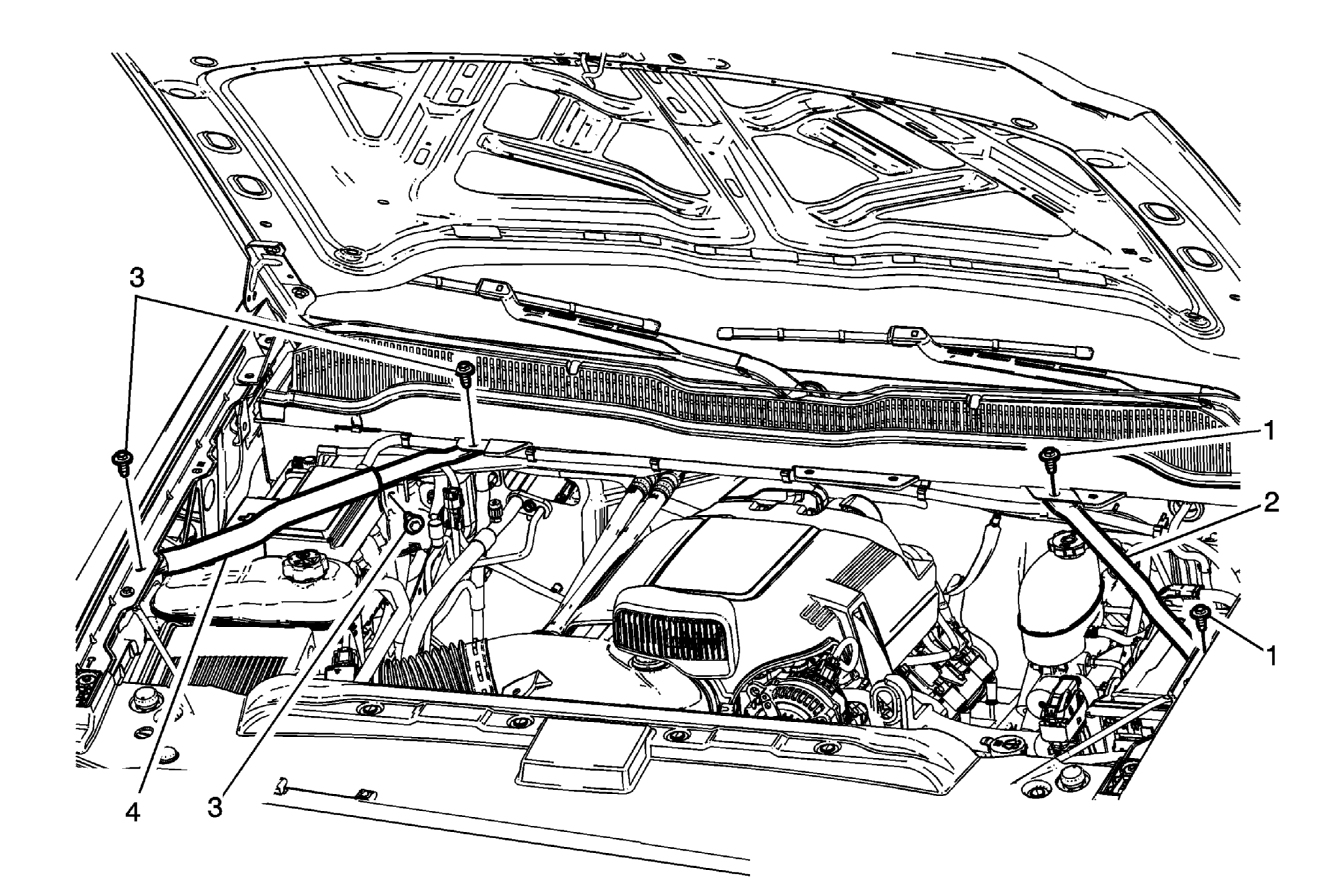

    12. Fig 6: Front Fender Rear Upper Brace (LV3, L96, LC8, lL83, L8B, L86)
    GM3247844Courtesy of GENERAL MOTORS COMPANY
  12. Install Front Fender Rear Upper Brace (4)Front Fender Rear Upper Brace Replacement
  13. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery)
