Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

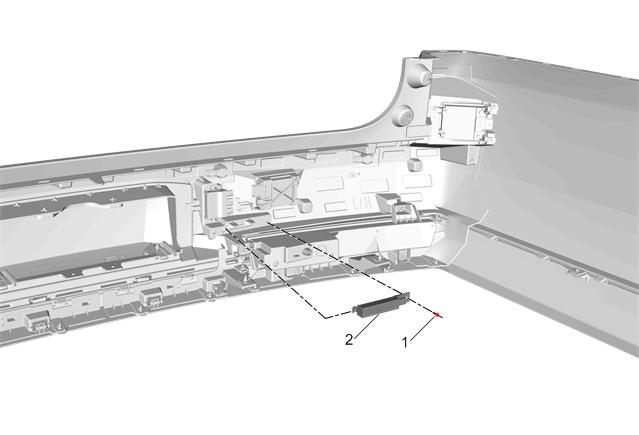

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia
GM3932436Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Eye Protection Warning .

Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet, GMC)Rear Bumper Fascia Replacement (Cadillac) .
1 Ignition Lock Key Transmitter Antenna Rivet
2 Ignition Lock Key Transmitter Antenna
Procedure
Disconnect the electrical connector.
