Side Blind Zone Alert Power, Ground, and Serial Data (UFG/UFT)

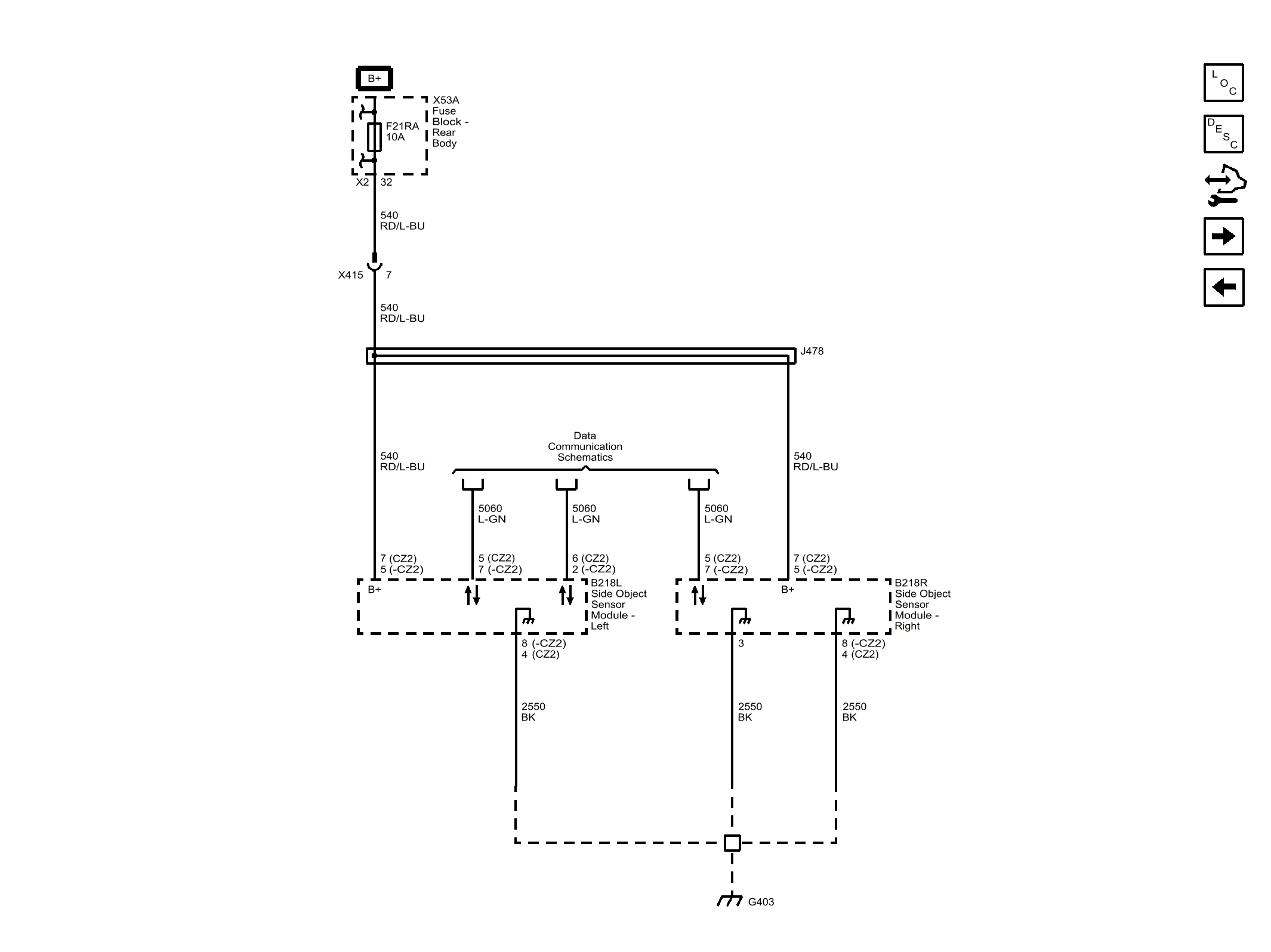

Fig 1: Side Blind Zone Alert Power, Ground, and Serial Data (UFG/UFT)
GM4454601Courtesy of GENERAL MOTORS COMPANY
