Installation Procedure

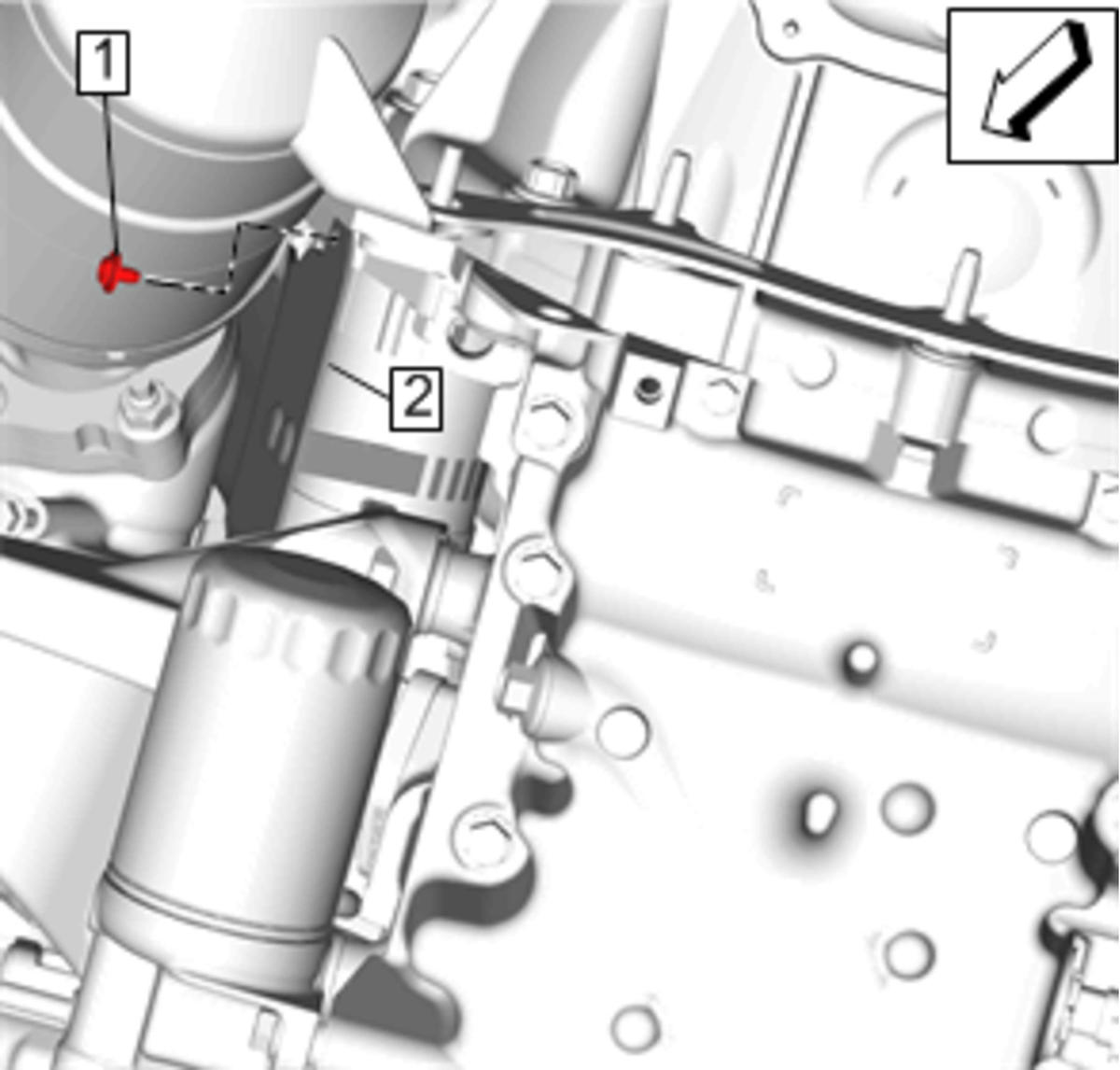

  1. GM4044624Courtesy of GENERAL MOTORS COMPANY

    Starter Heat Shield (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Starter Heat Shield Fastener (1) - Tighten to 4.7 N.m (42 lb in)
  3. Engine Mount Bracket - Left Side - Install - Engine Mount Bracket Replacement - Left Side (LF4)
  4. Lower the vehicle.
