Active Safety Control Module Replacement (With UKL)

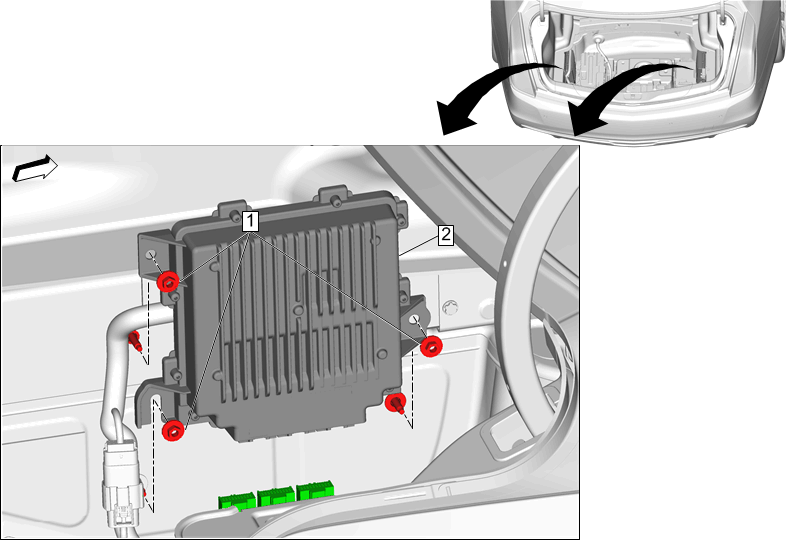

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Stowage Compartment Cover Replacement (Without HP9)
1	Active Safety Control Module Bracket Nut [3x] CAUTION: Fastener Caution Procedure Reposition the wiring harness. Tighten 9 N.m (80 lb in)
2	Active Safety Control Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Rear Compartment Floor Stowage Compartment Cover Replacement (Without HP9)

Active Safety Control Module Bracket Nut [3x]

CAUTION:

Fastener Caution

Procedure
Reposition the wiring harness.
Tighten
9 N.m (80 lb in)

Active Safety Control Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
