Digital Map Module Replacement

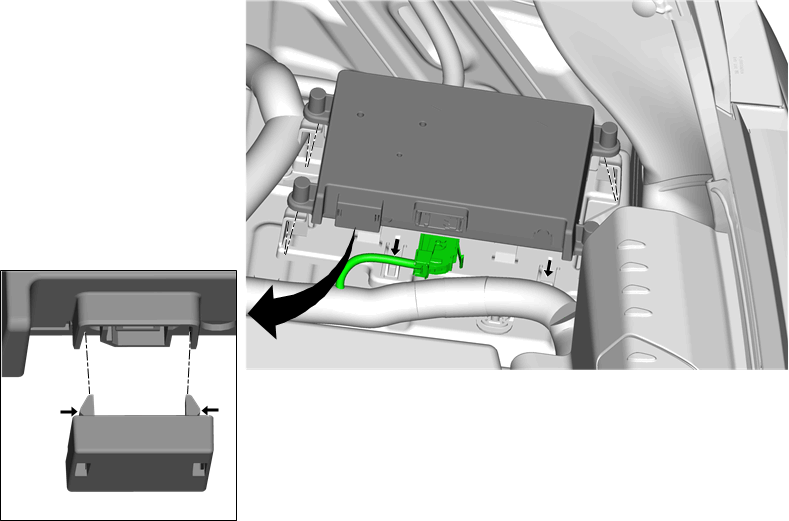

GM4866341

Callout

Component Name

Preliminary Procedure
Rear Compartment Side Trim Replacement - Right Side (Without HP9)Rear Compartment Side Trim Replacement - Right Side (With HP9)

1

Digital Map Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Remove the USB port cover.
Perform the necessary programming and setup procedure: Control Module References
