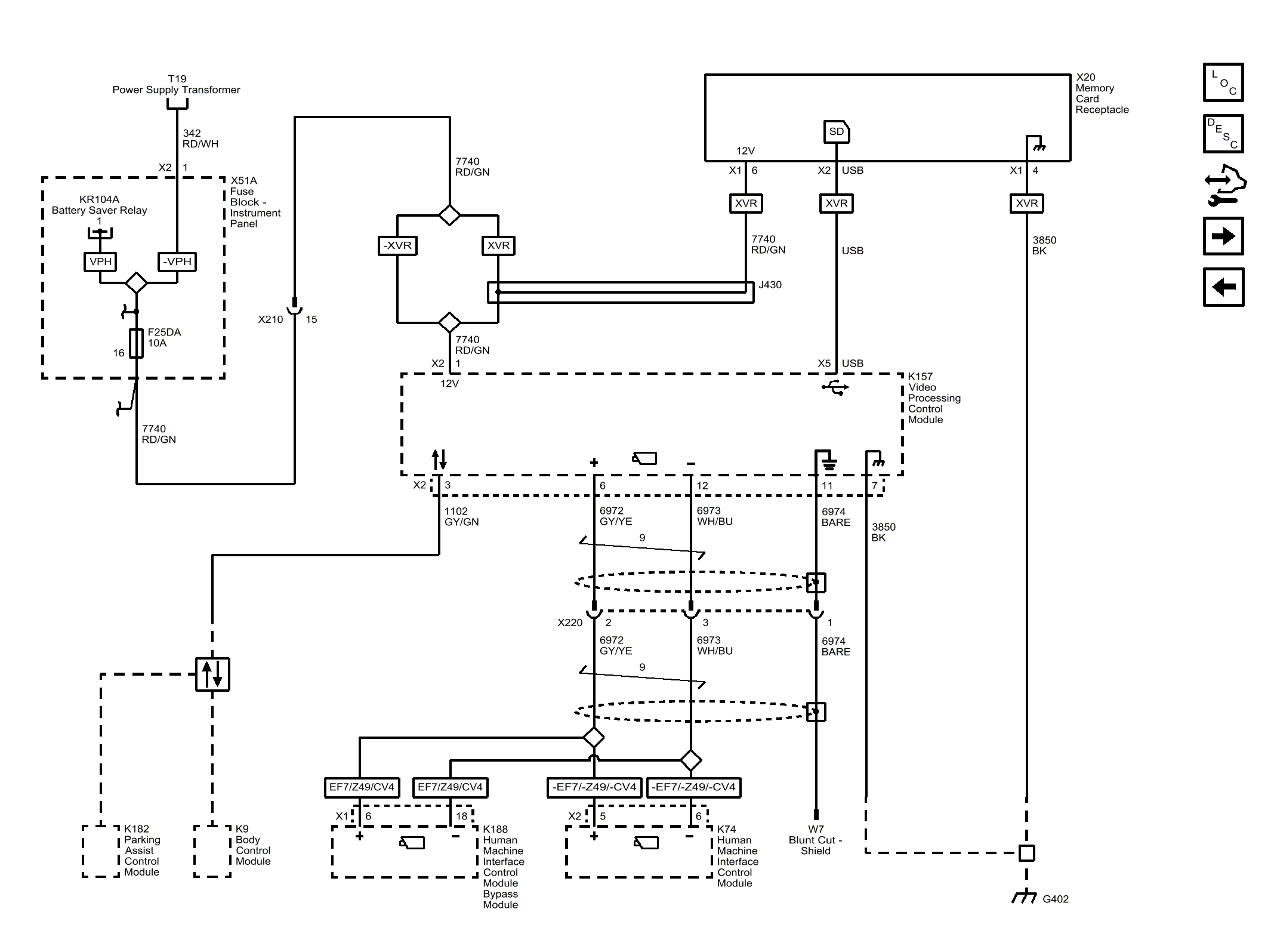

360 Degree Vision - Memory Card Receptacle (XVR) and Module Power, Ground, Serial Data, and Camera Signals (UVH)

GM4598709Courtesy of GENERAL MOTORS COMPANY
