Garage Door Opener Transmitter Replacement

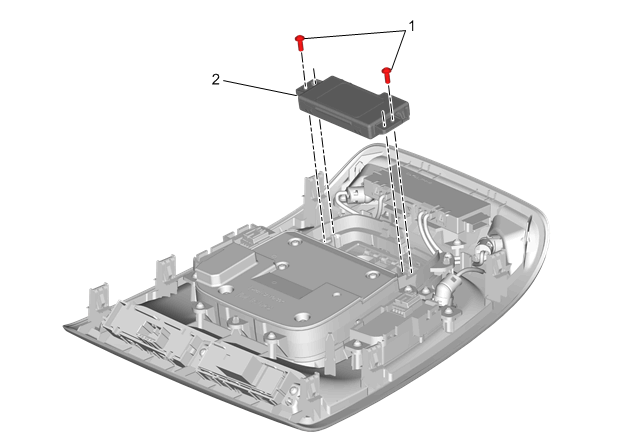

GM4256884Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Console Replacement
1 Roof Console Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Garage Door Opener Transmitter
