Garage Door Opener Transmitter Replacement

Courtesy of GENERAL MOTORS COMPANY

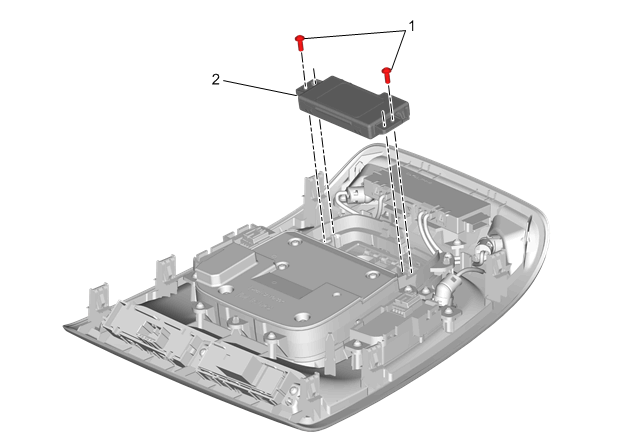

Callout	Component Name
Preliminary Procedure Roof Console Replacement
1	Roof Console Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Garage Door Opener Transmitter
