Engine Control Module Bracket Replacement (HP9)

Courtesy of GENERAL MOTORS COMPANY

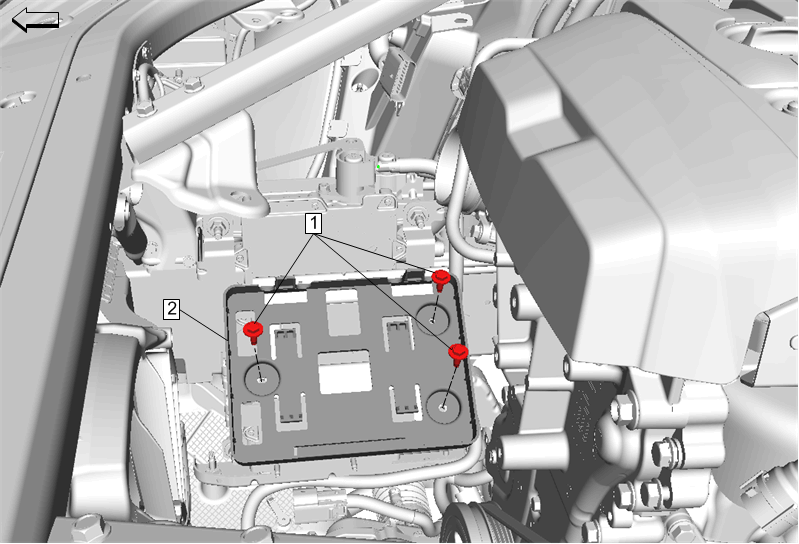

Callout	Component Name
Preliminary Procedure Engine Control Module Replacement (HP9)
1	Engine Control Module Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Control Module Bracket
