Fuel Pump Power Control Module Replacement (HP9)

Courtesy of GENERAL MOTORS COMPANY

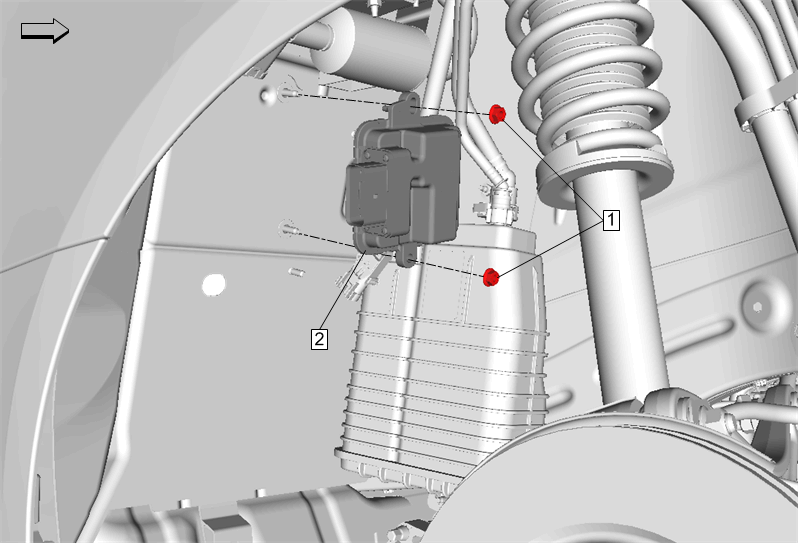

Callout	Component Name
Preliminary Procedure Rear Wheelhouse Liner Replacement
1	Fuel Pump Power Control Module Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Control Module References

Callout

Component Name

Preliminary Procedure
Rear Wheelhouse Liner Replacement

Fuel Pump Power Control Module Fastener [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure

Disconnect the electrical connector.
If replacing, reprogram the module. Control Module References
