Oil Pump Flow Control Valve Replacement

Courtesy of GENERAL MOTORS COMPANY

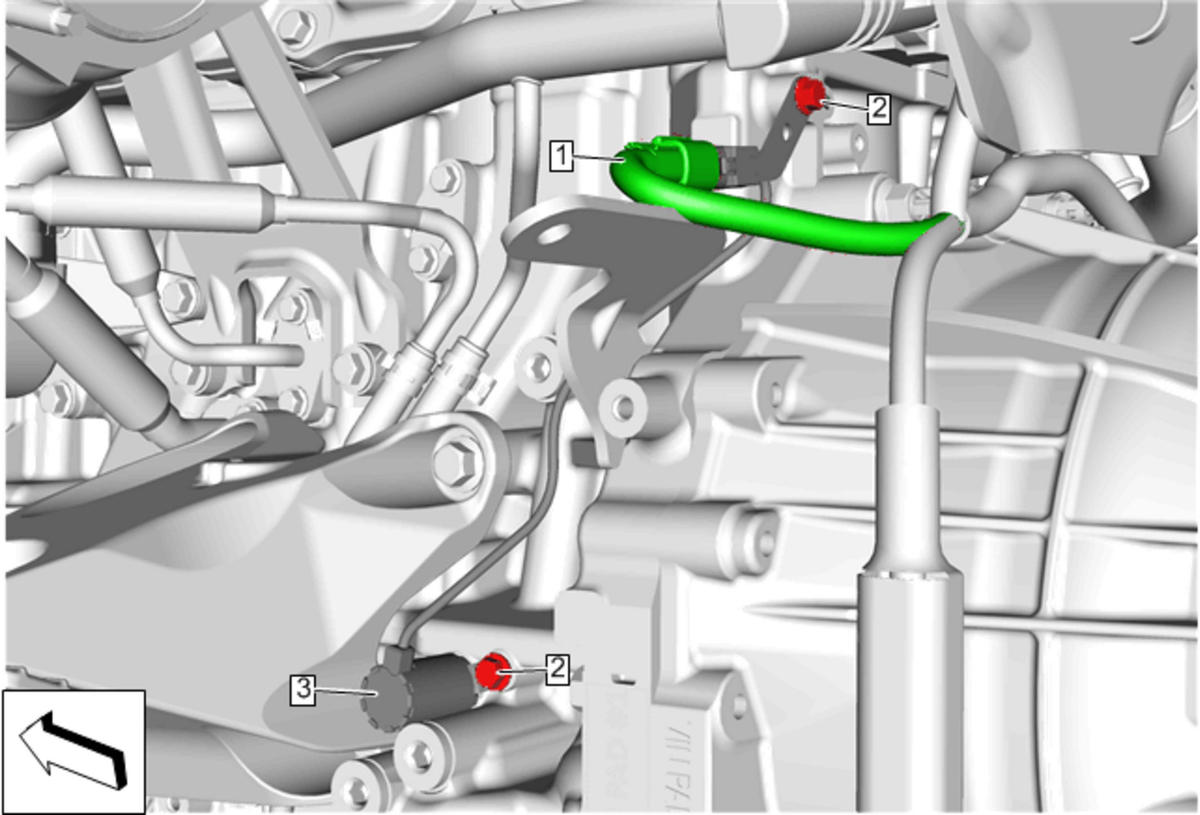

Callout	Component Name
Preliminary Procedures Warm Up Three-Way Catalytic Converter Replacement (LTG) Oil Pump Flow Control Valve Heat Shield Replacement
1	Electrical Connector
2	Oil Pump Flow Control Valve Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Oil Pump Flow Control Valve Procedure Install a NEW O-ring seal.
