Mobile Telephone Microphone Replacement

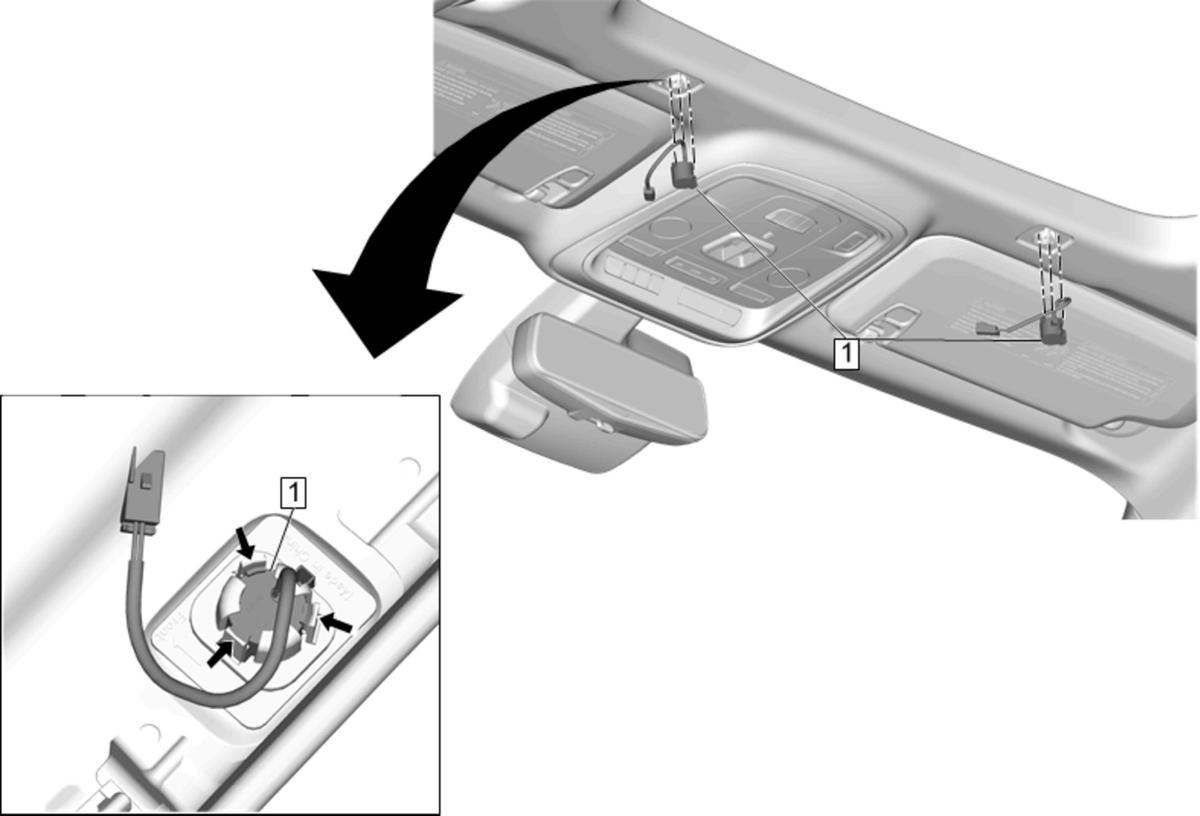

GM4534621

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Mobile Telephone Microphone Grille Replacement
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (Without Sunroof)Headlining Trim Panel Replacement (With Sunroof)

1

Mobile Telephone Microphone

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
