Liftgate Latch Replacement (Chevrolet, GMC)

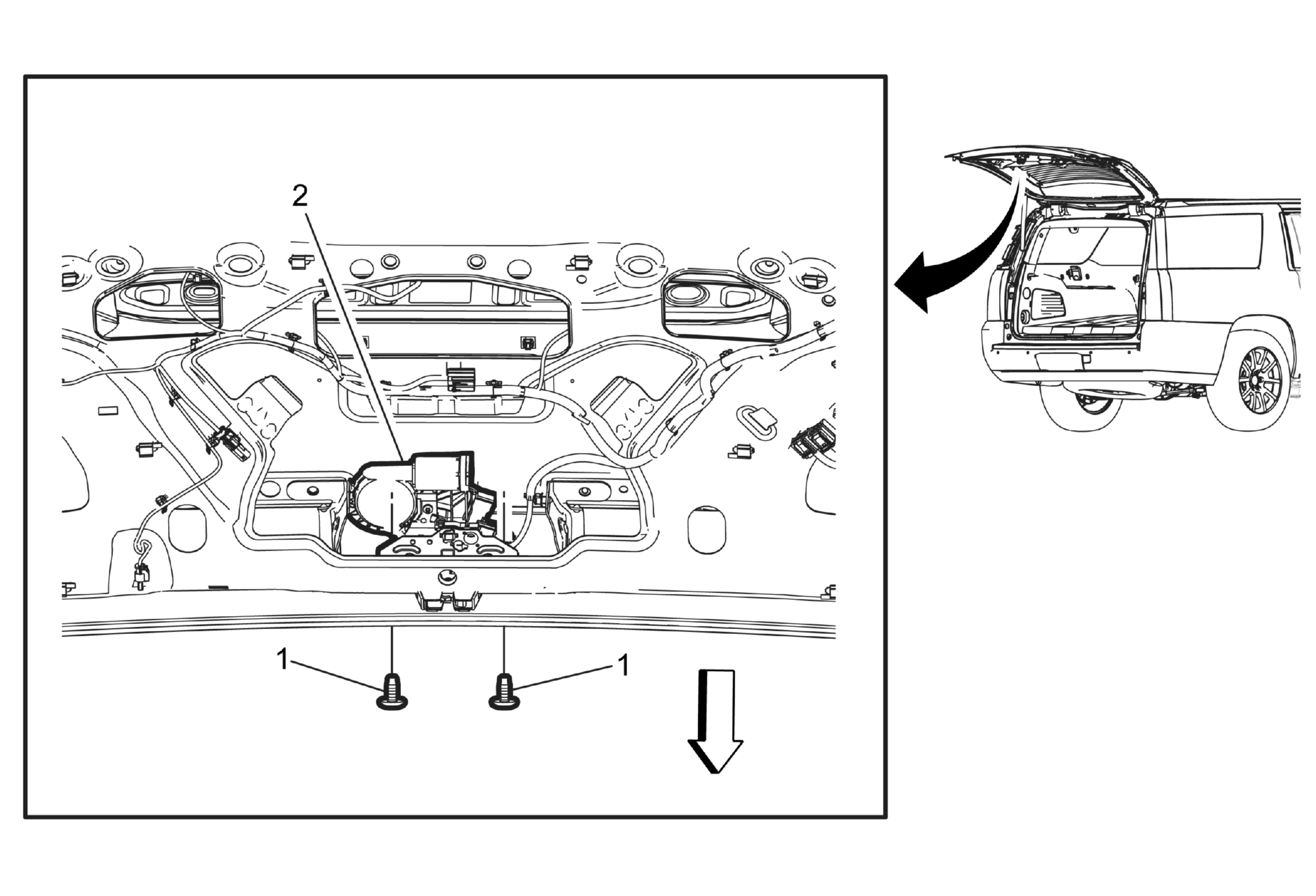

Fig 1: Liftgate Latch (Chevrolet, GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate trim panel. Refer to Liftgate Trim Finish Panel Replacement .
1	Liftgate Latch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Latch Assembly Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the liftgate trim panel. Refer to Liftgate Trim Finish Panel Replacement .

Liftgate Latch Screw (Qty: 2)

CAUTION:

Tighten
22 N.m (16 lb ft)

Liftgate Latch Assembly

Procedure
