Accessory AC and DC Power Control Module Replacement

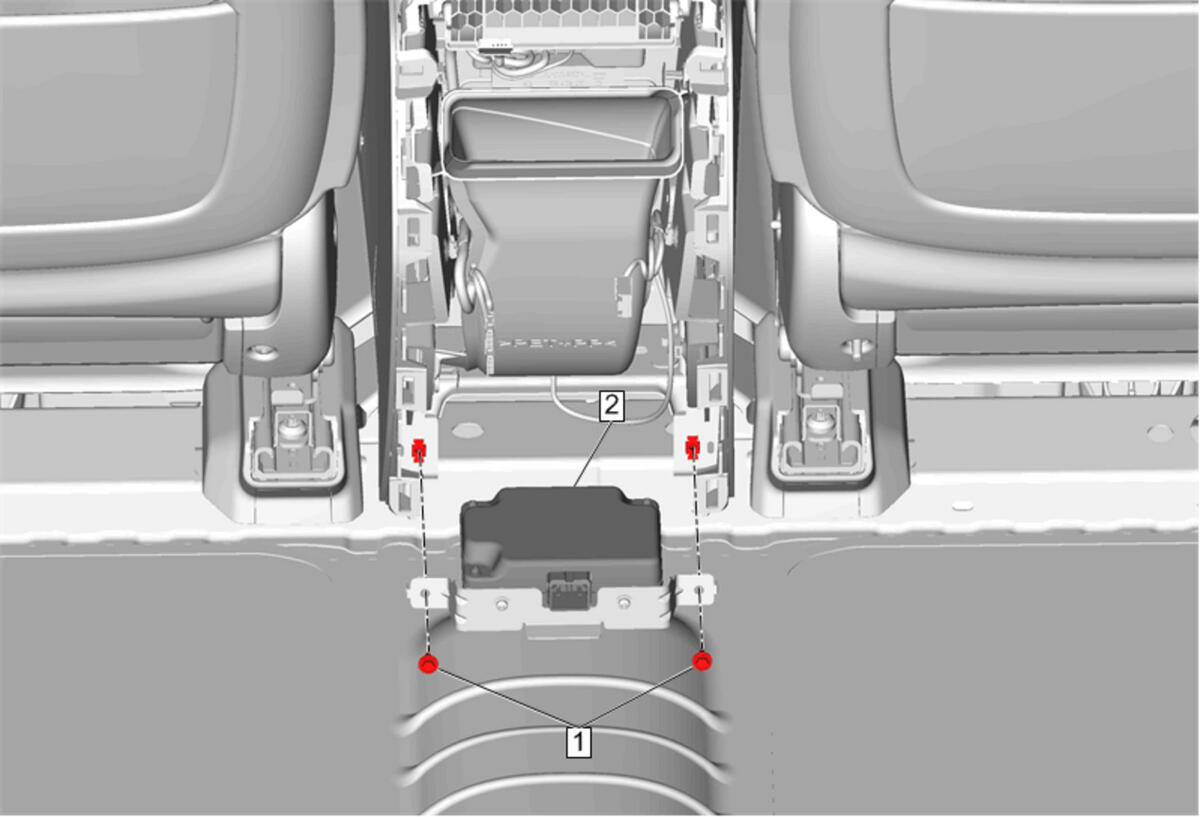

GM4290422Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
  2. Front Floor Console Rear Trim Panel Replacement
  3. Reposition the carpet, if necessary.
1 Accessory AC and DC Power Control Module Bolt[2x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Accessory AC and DC Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
