Communication Interface Module Microphone Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (Without Sunroof)Headlining Trim Panel Replacement (With Sunroof)

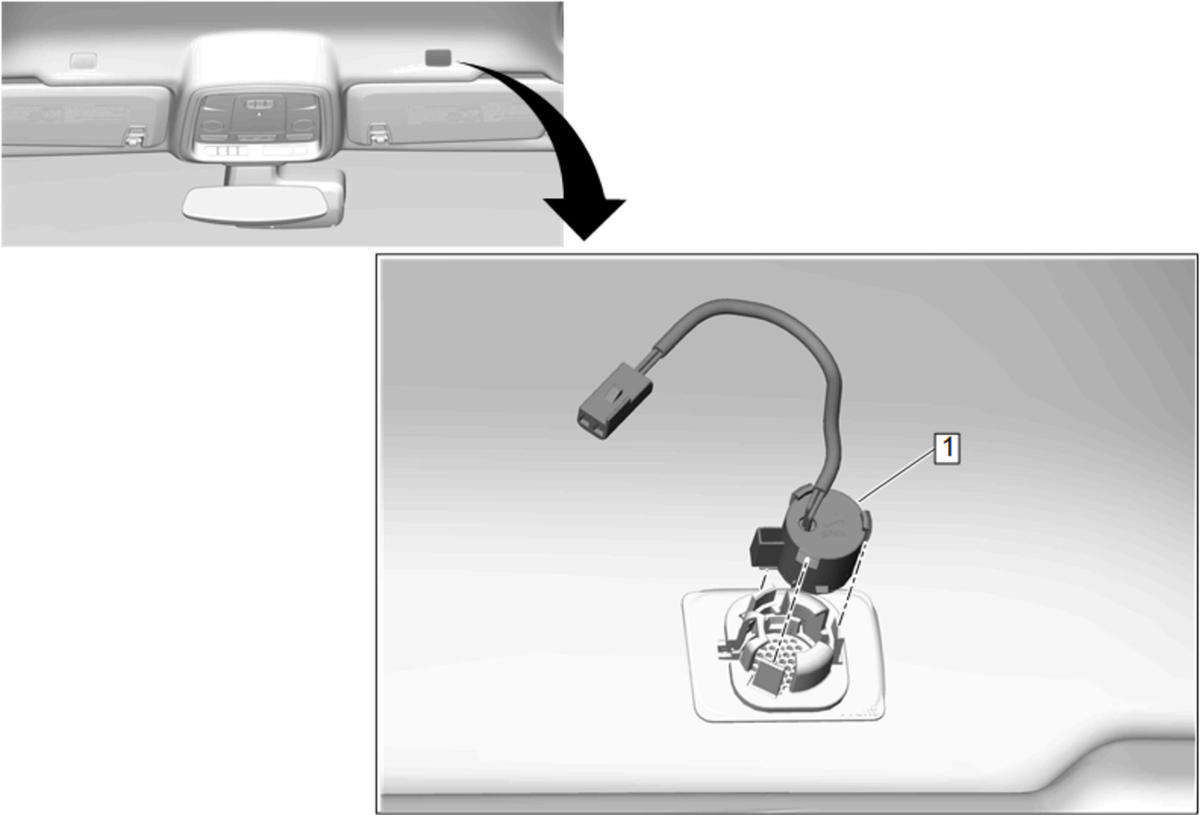

1	Communication Interface Module Microphone Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (Without Sunroof)Headlining Trim Panel Replacement (With Sunroof)

Communication Interface Module Microphone

Procedure
