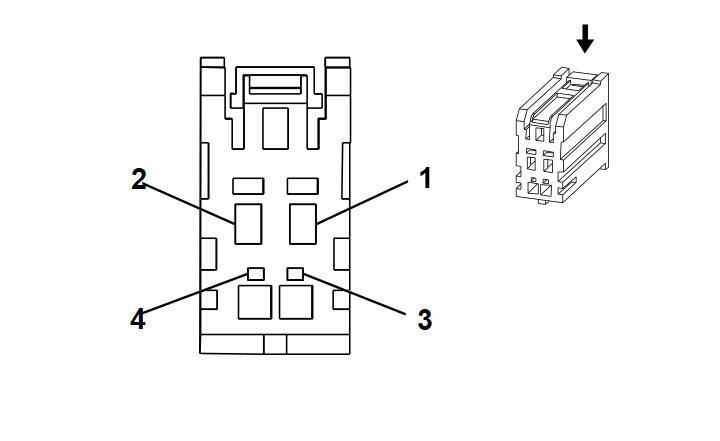

K99 Steering Column Position Control Module X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Steering Column Tilt Motor
- OEM Connector: 19206654
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64, 1.5 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BN/GY |
2112 |
Steering Column Tilt Motor Down Control |
I |
- |
| 2 |
1 |
GY/VT |
2111 |
Steering Column Tilt Motor Up Control |
I |
- |
| 3 |
0.35 |
WH/BK |
2157 |
Steering Column Tilt Motor Low Reference |
I |
- |
| 4 |
0.35 |
YE |
2154 |
Steering Column Tilt Motor Signal |
I |
- |
