K99 Steering Column Position Control Module X2
 Courtesy of GENERAL MOTORS COMPANY
|

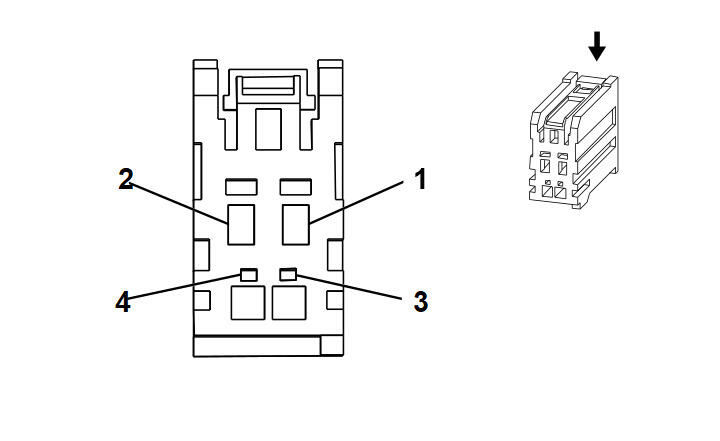

Connector Part Information
- Harness Type: Steering Column Telescope Motor
- OEM Connector: 19206655
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64, 1.5 Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BU/BK |
2098 |
Steering Column Telescope Motor Forward Control |
I |
- |
| 2 |
1 |
YE/BN |
2110 |
Steering Column Telescope Motor Rearward Control |
I |
- |
| 3 |
0.35 |
YE/BK |
2152 |
Steering Column Telescope Motor Low Reference |
I |
- |
| 4 |
0.35 |
VT/GY |
2153 |
Steering Column Telescope Motor Signal |
I |
- |
