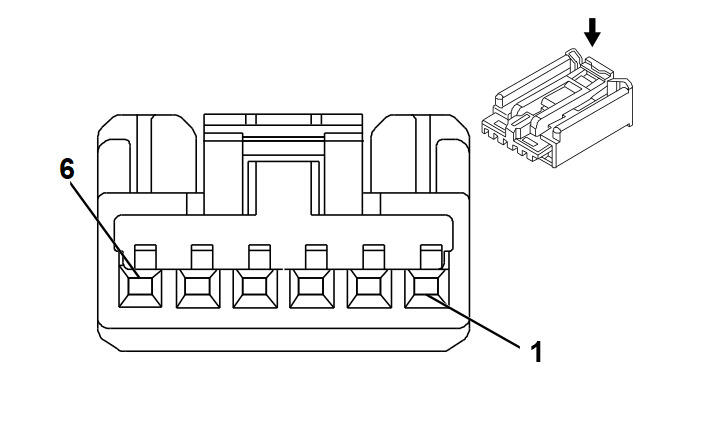

K99 Steering Column Position Control Module X4
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: AIT2PB-06-1AK
- Service Connector: 19367517
- Description: 6-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1550 |
Ground |
I |
- |
| 2 |
0.35 |
BU/YE |
2094 |
Steering Column Tilt and Telescope Forward Switch Signal |
I |
- |
| 3 |
0.35 |
GN/BN |
2095 |
Steering Column Tilt and Telescope Rearward Switch Signal |
I |
- |
| 4 |
0.35 |
BN/GY |
2096 |
Steering Column Tilt and Telescope Up Switch Signal |
I |
- |
| 5 |
0.35 |
YE/BN |
2097 |
Steering Column Tilt and Telescope Down Switch Signal |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
