Rear Center Seat Belt Buckle Replacement

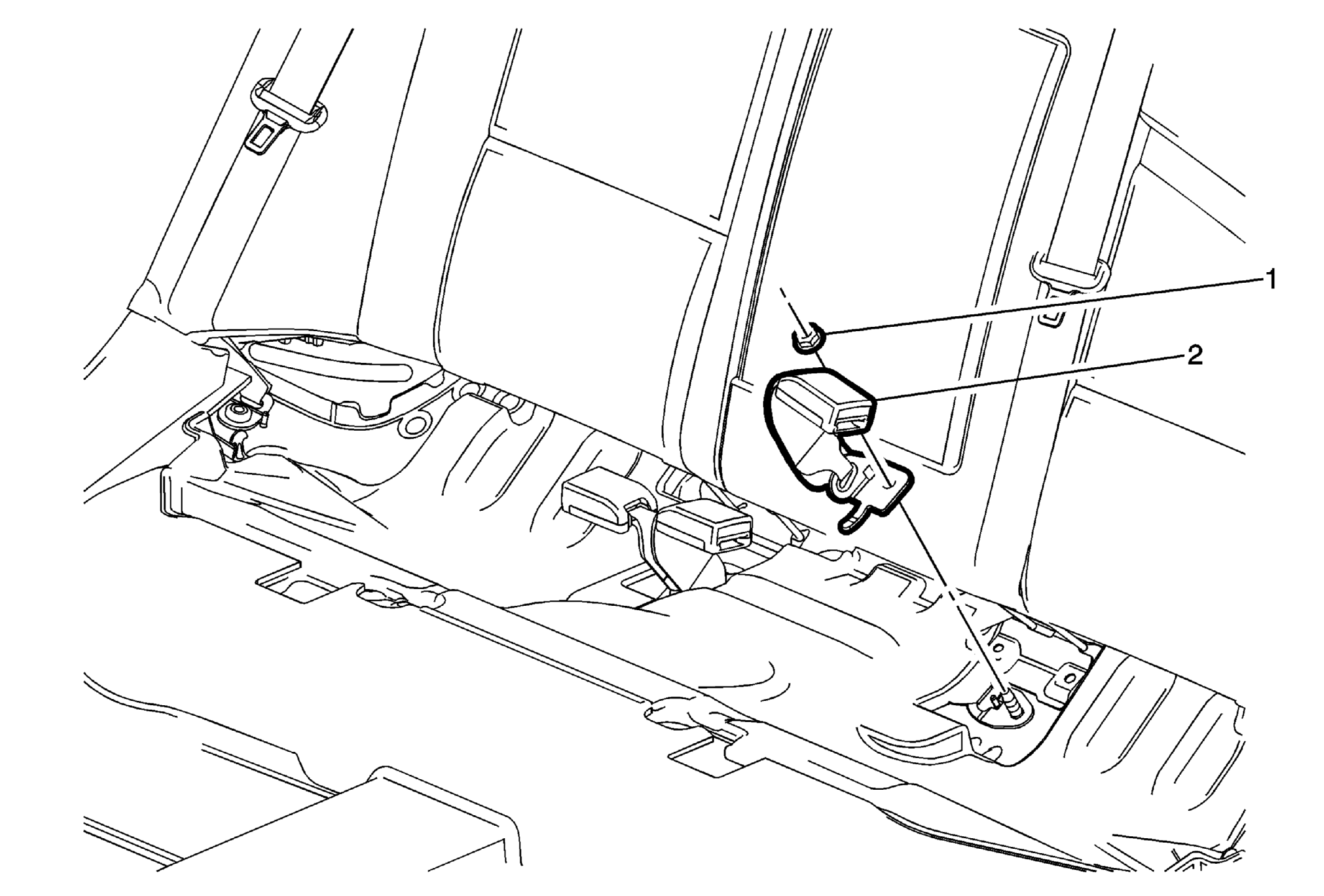

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . |
|
| 1 | Rear Center Seat Belt Buckle Nut
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Center Seat Belt Buckle |
